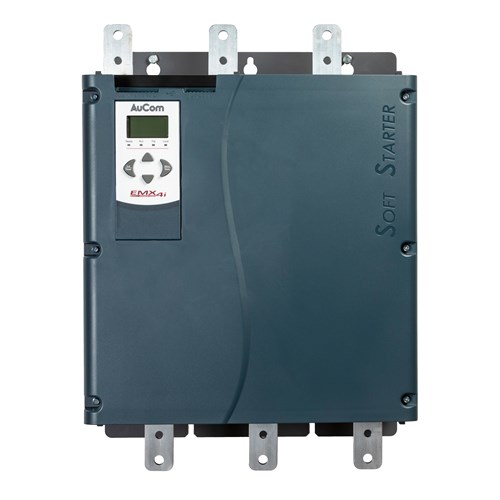

AuCom EMX4i0835BV5C1H SOFT STARTER EMX4i 835A 200-525VAC, CONTROL 110/240VAC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S3 with an IP00 rating. The current ratings for the EMX4i are as follows: 835A at light load, 654A at medium load, 535A at heavy load, and 432A at severe load. The supply voltage range for the EMX4i is 200-525V AC, while the control voltage is 110/240V AC. This smart soft starter offers a wide range of motor control features, including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse) and inside delta (6 wire) control. In terms of motor protection, the EMX4i provides protection for motor thermistor, current imbalance, under/over current, phase sequence, phase loss and power loss. It also includes emergency run mode and run simulation with real-time performance graphs. For simplified management, the EMX4i offers SCR fail power through operation and daily on/off scheduling. Additionally, it can support an I/O smart card or communication expansion card with remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card for advanced functionality. The EMX4i also includes a USB port and data logging feature for easy parameter upload and download.
