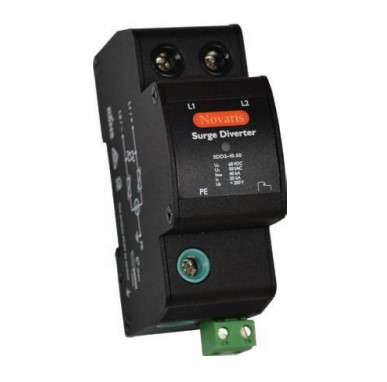

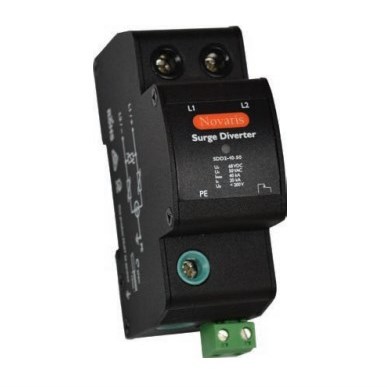

NOVARIS SURGE DIVERTER, ELV ISOLATED, 40KA IDD2-40-130

Product Code: IDD2-40-130

The Novaris IDD2-40-130 ELV Isolated Surge Diverters provide robust surge protection for isolated AC and DC power feeds. They offer both common and transverse mode protection with minimal earth leakage current. Featuring an LED display for power status and thermal overload, passive alarm with normally closed connection, housed in a safe metal enclosure, these diverters are designed to prevent fire or explosion during prolonged overvoltage events.

Technical Specifications

Nominal Voltage DC (V) 110
Voltage Protection Level (1kV/µs) - Up (kV) <0.36 (L-PE)
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.37 (L-L), <0.44 (L-PE)
Brand NOVARIS
Dimensions (mm) 36W x 70H x 95L
Maximum Continuous Operating Voltage MCOV AC (V) 130
Maximum Continuous Operating Voltage MCOV DC (V) 155
Maximum Discharge Current (8/20µs) - Imax (kA) 40 (L-L), 20 (L-PE)
Mounting Type DIN rail
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 (L-L), 10 (L-PE)
Nominal Voltage AC (V) 110
Series IDD2
Weight (g) 220
