Product Code: IC200UDR005

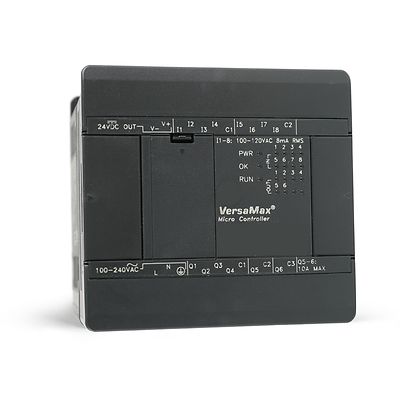

The Emerson VersaMax Micro 28-point PLC is a compact yet powerful automation system designed for streamlined operations. This PLC features 16 discrete inputs and 12 outputs, with the capability to expand up to 4 I/O units. Connectivity is facilitated through one RS-232 port and one RS-485 port, with an Ethernet option available via VersaMax SE. Ideal for engineers looking for a reliable PLC solution within the VersaMax series, this unit offers flexibility and efficiency in various industrial applications.

Maximum Nominal Output Voltage DC (V)	24
Maximum Temperature (°C)	55
Minimum Temperature (°C)	0
No. of Digital Inputs	16
No. of Digital Outputs	12
No. of IO	28
No. of Serial Ports	2
Rated Maximum Operational Voltage DC (V)	24
Brand	Emerson
Communication Protocols	MODBUS
Degree of Protection	IP20
Mounting Type	DIN Rail
Series	VersaMax

Programmable Logic Controllers & I/O

EMERSON VERSAMAX MICRO 28 POINT PLC IC200UDR005

Product Code: IC200UDR005

Technical Specifications
