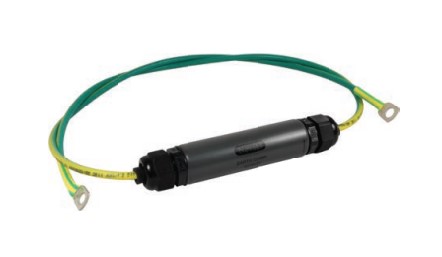

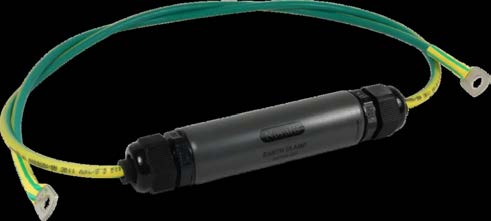

NOVARIS NOVARIS EC EARTH CLAMP, 230V DC SPARK, IP65 EC100-230

The Novaris EC Earth Clamp is designed for securing earthing systems in environments such as computer rooms, defense installations, and gas pipeline insulated joints. With a sparkover voltage of 230V and impulse sparkover voltage below 900V, it ensures robust protection against transient disturbances. The clamp features a high isolation resistance of 10GΩ and low capacitance of 4pF, with an impressive maximum discharge current capacity of up to 100kA (8/20 μs). It operates efficiently within a wide temperature range from -40 °C to +70 °C and humidity levels from 5% to 95%. The PVC enclosure with an IP65 environmental rating ensures durability in various conditions.
