Breaking Capacity AC (kA)	25
Maximum Continuous Voltage AC (V)	440
Mounting Method	DIN Rail 35mm
No. of Conductors	3
Brand	DEHN
Degree of Protection	IP20
Dimensions (mm)	54W x 90H x 66D
Maximum Discharge Current (8/20µs) - Imax (kA)	40
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Voltage AC (V)	400/690
Reference No.	FM952308
Standards and Approvals	EN 61643-11
Suitable For	Power Supply Systems
Weight (kg)	0.362

Lightning & Surge Protection

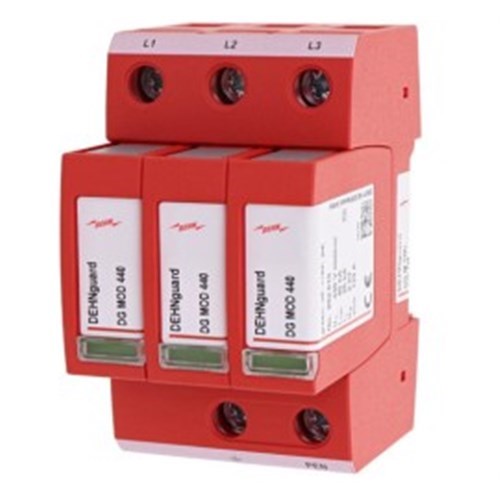

DEHN ABLEITER GUARD M DGMTNC440FM
