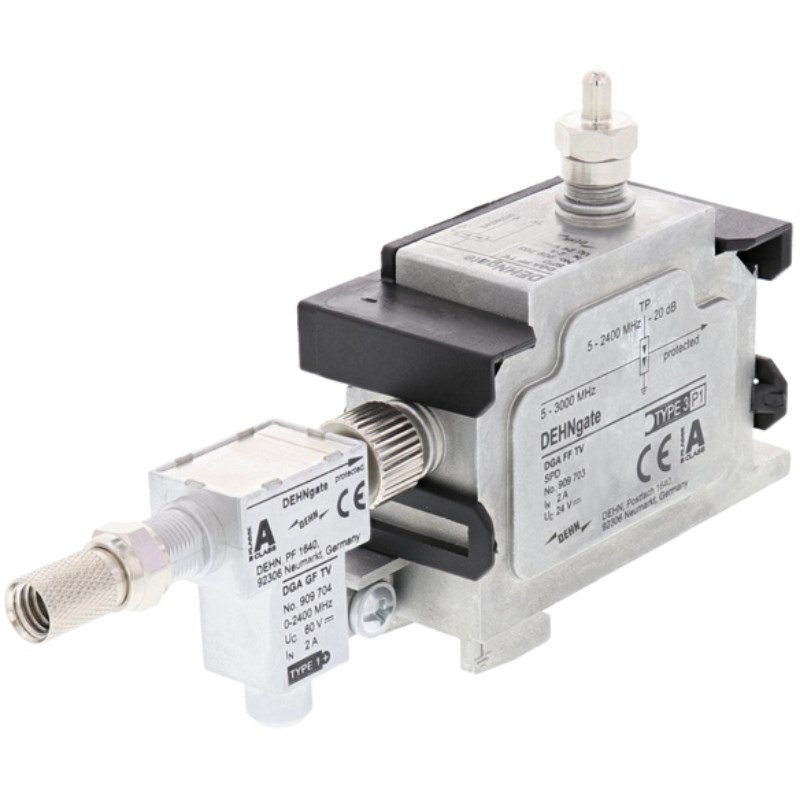

DEHN DEHNGATE COMBINED LIGHTNING CURRENT AND SURGE ARRESTER SET DGAGFFTV

Product Code: DGAGFFTV

Combined lightning current and surge arrester with F socket for remote supply for 75 ohm satellite and broadband cable systems. It fulfils the high shielding requirements of class A according to EN 50083-2. It allows space-saving installation into all common TV and satellite applications and is available with integrated measuring output for testing installations.

Technical Specifications

Module Width (mm) 27
Brand DEHN
Article No. 909705
Connection Type F socket
Degree of Protection IP30
Dimensions (mm) 0.08W x 0.15L x 0.03D
Enclosure Material Metal
Lightning Impulse Current (10/350 µs) - Iimp (kA) 2.5
Maximum Continuous Operating Voltage MCOV DC (V) 24
Mounting Type DIN Rail/Wall
No. of Modules 1.5
Nominal Discharge Current (8/20µs) - In (kA) 10
Voltage Protection Level - Up (kV) ≤ 0.3
Weight (kg) 0.28
