Connector Orientation	M/F
Maximum Continuous Operating Voltage MCOV (V)	36
No. of Lines	8
Brand	NOVARIS
Communication	RS232
Connection Type	Series
Connector Type	DB9
Degree of Protection	IP20
Dimensions (mm)	17H x 34W x 63D
Maximum Discharge Current (8/20µs) - Imax (kA)	10 (L - E)
Operational Temperature Range (°C)	-40 to 85
Series	DB
Standards and Approvals	IEC61643-21, ITU-T K.44, AS/NZS 1768, IEEE C62.41, UL497B

Lightning & Surge Protection

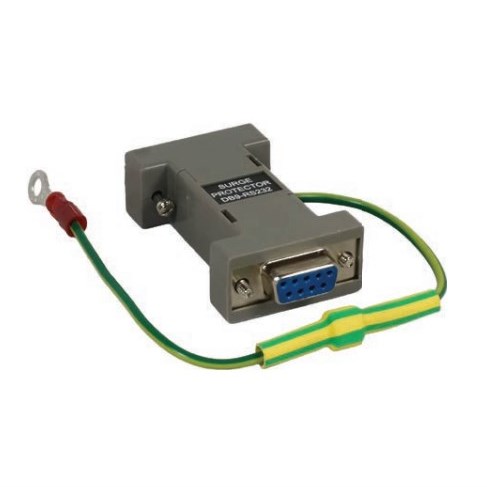

NOVARIS RS SERIAL PORT PROTECTOR DB9-RS232
