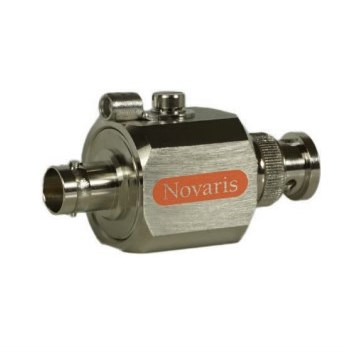

NOVARIS GAS DISCHARGE SURGE PROTECTOR 20kA 3GHz CB-FF-90-3

Product Code: CB-FF-90-3

Gas discharge surge protectors with a sparkover voltage (Uc) of 90VDC and a maximum discharge current (Imax) of 20kA at 8/20ms. It has voltage protection levels (Up) below 650V at 5kV (10/700ms). The surge protector is designed for a maximum working frequency of 3 GHz and power ratings ranging from 0-40W. It features a BNC (B) connector type with F/F gender, capable of passing RF signals.

Technical Specifications

Connector Orientation F/F
Maximum Working Frequency (GHz) 3
Sparkover Voltage DC (V) 90
Voltage Protection at 5kV (10/700µs) - Up (kV) <0.65
Brand NOVARIS
Connector Type BNC
Dimensions (mm) 55L x 25H
Maximum Discharge Current (8/20µs) - Imax (kA) 20
Operational Temperature Range (°C) -40 to 85
Standards and Approvals IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
