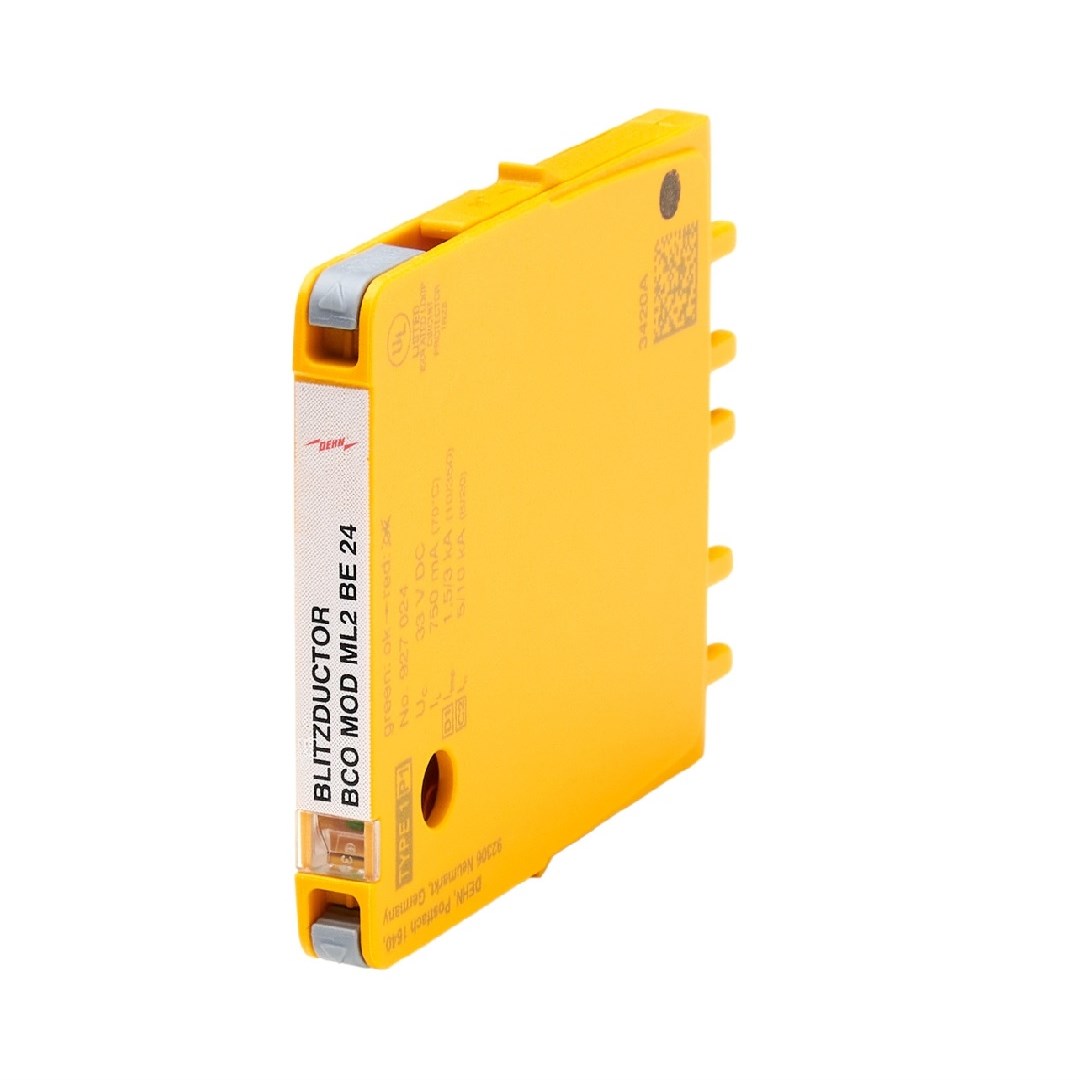

DEHN MODULAR ARRESTER FOR 2 SINGLE CORES BLITZDUCTORCONNECT W. FAULT INDICATION BCOMODML2BE24

Product Code: BCOMODML2BE24

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting two single lines sharing a common reference potential as well as unbalanced interfaces.

Technical Specifications

Module Width (mm) 6
Nominal Voltage (V) 24
Pluggable Plugs in to BCO Base Part
Brand DEHN
Article No. 927024
Degree of Protection IP20
Dimensions (mm) 0.08W x 0.12L x 0.01D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 1.5 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V) 23.3
Maximum Continuous Operating Voltage MCOV DC (V) 33
Maximum Discharge Current (8/20µs) - Imax (kA) 20
Nominal Discharge Current (8/20µs) - In (kA) 5 (Per Line)
Operating State/Fault Indication Green/Red
Total Discharge Current (10/350 µs) - Itotal (kA) 3
Total Discharge Current (8/20µs) - Itotal (kA) 10
Voltage Protection Level - Up (kV) ≤ 0.090 (Line-Line)/≤ 0.075 (Line-PG)
Weight (kg) 0.04
