Module Width (mm)	6
Nominal Voltage (V)	12
Pluggable	Plugs in to BCO Base Part
Brand	DEHN
Article No.	927042
Degree of Protection	IP20
Dimensions (mm)	0.08W x 0.12L x 0.01D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	1.5 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V)	10.6
Maximum Continuous Operating Voltage MCOV DC (V)	15
Maximum Discharge Current (8/20µs) - Imax (kA)	20
Nominal Discharge Current (8/20µs) - In (kA)	5 (Per Line)
Operating State/Fault Indication	Green/Red
Total Discharge Current (10/350 µs) - Itotal (kA)	3
Total Discharge Current (8/20µs) - Itotal (kA)	10
Voltage Protection Level - Up (kV)	≤ 0.032 (Line-Line)/≤ 0.6 (Line-PG)
Weight (kg)	0.04

Lightning & Surge Protection

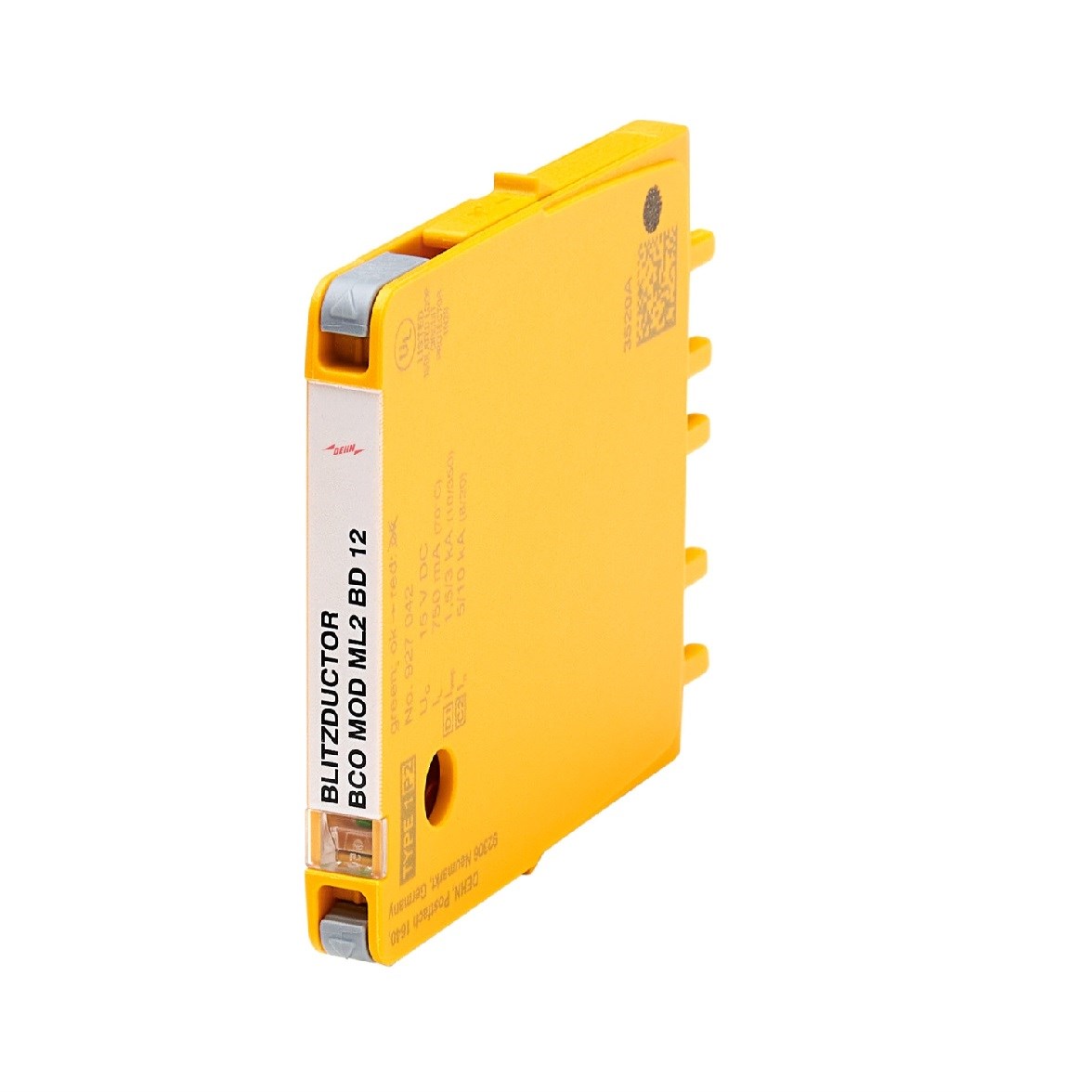

DEHN PROTECTION MODULE FOR 1 PAIR BLITZDUCTORCONNECT W. FAULT INDICATION BCOMODML2BD12
