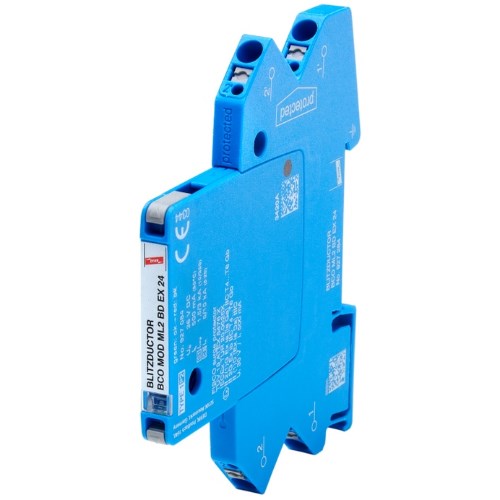

DEHN MODULAR COMBINED ARRESTER FOR 1 PAIR BLITZDUCTORCONNECT W. FAULT INDICATION BCOML2BDEX24

Product Code: BCOML2BDEX24

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V line-ground. With signal disconnection for maintenance purposes.

Technical Specifications

Module Width (mm) 6
Nominal Voltage (V) 24
Brand DEHN
Article No. 927284
Cable Cross Section (mm²) 0.08 - 2.5 (Solid/Flexible)
Connection Type Push-in
Degree of Protection IP20
Dimensions (mm) 0.08W x 0.12L x 0.01D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 1.5 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V) 25.4
Maximum Continuous Operating Voltage MCOV DC (V) 36
Maximum Discharge Current (8/20µs) - Imax (kA) 20
Mounting Type DIN Rail
Nominal Discharge Current (8/20µs) - In (kA) 5 (Per Line)
Operating State/Fault Indication Green/Red
Total Discharge Current (10/350 µs) - Itotal (kA) 3
Total Discharge Current (8/20µs) - Itotal (kA) 10
Voltage Protection Level - Up (kV) ≤ 0.065 (Line-Line)/≤ 1.1 (Line-PG)
Weight (kg) 0.07
