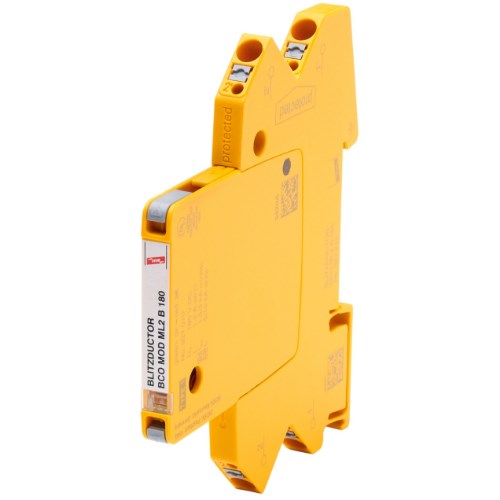

DEHN ARRESTER FOR 2 SINGLE CORES BLITZDUCTORCONNECT W. FAULT INDICATION BCOML2B180

Product Code: BCOML2B180

Space-saving, modular lightning current arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables. With signal disconnection for maintenance purposes.

Technical Specifications

Module Width (mm) 6
Nominal Voltage (V) 180
Brand DEHN
Article No. 927210
Cable Cross Section (mm²) 0.2 - 2.5 (Solid/Flexible)
Connection Type Push-in
Degree of Protection IP20
Dimensions (mm) 0.08W x 0.12L x 0.02D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 1.5 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V) 127
Maximum Continuous Operating Voltage MCOV DC (V) 180
Mounting Type DIN Rail
Nominal Discharge Current (8/20µs) - In (kA) 5 (Per Line)
Operating State/Fault Indication Green/Red
Total Discharge Current (10/350 µs) - Itotal (kA) 3
Total Discharge Current (8/20µs) - Itotal (kA) 10
Voltage Protection Level - Up (kV) ≤ 1.1 (Line-Line)/≤ 0.8 (Line-PG)
Weight (kg) 0.06
