Earth Fault Protection	DIN rail (top hat rail)
Impulse Category	D1, C1, C2, C3, B2
L-L Capacitance (nF)	≤ 1.37
L-PE Capacitance (pF)	≤ 13.06
Limiting Frequency (Hz)	2
Maximum Continuous Voltage AC (V)	31.8
Maximum Continuous Voltage DC (V)	45
Mounting Method	DIN rail (top hat rail) 35 mm
Nominal Voltage (V)	24
Nominal Voltage DC (V)	24
SPD Type	Type 1
Voltage Protection Level - Up (V)	Line-Line for In 1 kA C2: ≤ 100 Line-PG for In C2: ≤ 800 Line-PG for 1 kV/µs C3: ≤ 800
Voltage Protection Level Earth	800
Brand	DEHN
Colour	Yellow
Connector Type	Push-in / Push-in
Degree of Protection	IP20
Dimensions (mm)	9W x 10H x 2D
Enclosure Material	Polyamide PA 6.6
Lightning Impulse Current (10/350 µs) - Iimp (kA)	5
Maximum Continuous Operating Voltage MCOV AC (V)	31.8
Maximum Continuous Operating Voltage MCOV DC (V)	45
Mounting Type	DIN Rail
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Load Current AC - I? (A)	10
Operational Temperature Range (°C)	-40 to 80
Reference No.	927408
Standards and Approvals	IEC 61643-21 / EN 61643-21, UL 497B, SIL
Suitable For	Pluggable DIN Rail Mounted
Voltage Protection Level - Up (kV)	100
Weight (kg)	0.052

Lightning & Surge Protection

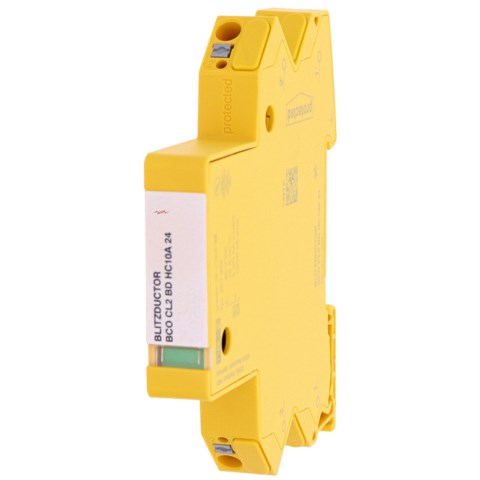

DEHN BLITZDUCTOR CONNECT CL2 BDHC10A 24 , T1, 45VDC & 31.8VAC BCOCL2HC10A24
