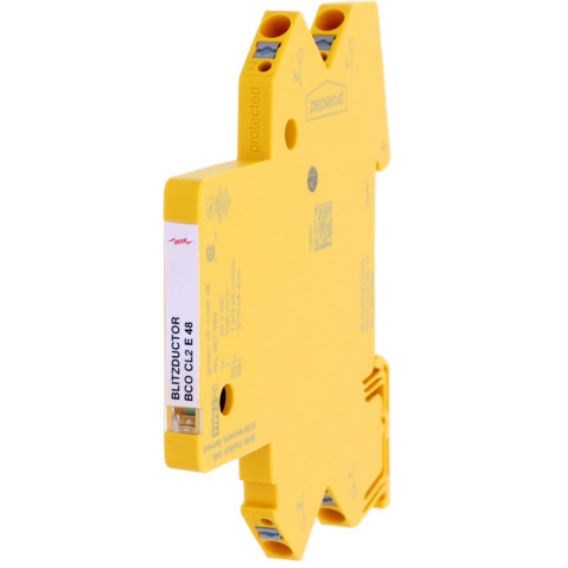

DEHN COMPACT SURGE ARRESTER FOR 2 SINGLE LINES BLITZDUCTORCONNECT WITH STATUS INDICATION BCOCL2E48

Product Code: BCOCL2E48

Space-saving, compact surge arrester with a width of 6 mm and push-in connection technology with status indication. Finely limiting, single-stage surge protection with powerful diodes for protecting two single cores sharing a common reference potential as well as unbalanced interfaces.

Technical Specifications

Module Width (mm) 6
Nominal Voltage (V) 48
Brand DEHN
Article No. 927989
Cable Cross Section (mm²) 0.2 - 2.5 (Solid/Flexible)
Connection Type Push-in
Dimensions (mm) 0.08W x 0.12L x 0.02D
Maximum Continuous Operating Voltage MCOV AC (V) 41
Mounting Type DIN Rail
Nominal Discharge Current (8/20µs) - In (kA) 0.4 (Per Line)
Operating State/Fault Indication Green/Red
Total Discharge Current (8/20µs) - Itotal (kA) 0.8
Voltage Protection Level - Up (kV) ≤ 0.18 (Line-Line)/≤ 0.09 (Line-PG)
Weight (kg) 0.04
