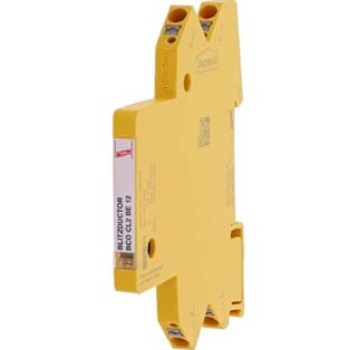

DEHN COMPACT ARRESTER FOR 2 SINGLE CORES BLITZDUCTORCONNECT W. FAULT INDICATION BCOCL2B180

Product Code: BCOCL2B180

Space-saving, compact lightning current arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables.

Technical Specifications

Module Width (mm) 6
Nominal Voltage (V) 180
Brand DEHN
Article No. 927910
Cable Cross Section (mm²) 0.2 - 2.5 (Solid/Flexible)
Connection Type Push-in
Degree of Protection IP20
Dimensions (mm) 0.08W x 0.12L x 0.01D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 1.5 (Per Line)
Maximum Continuous Operating Voltage MCOV AC (V) 127
Maximum Continuous Operating Voltage MCOV DC (V) 180
Mounting Type DIN Rail
Nominal Discharge Current (8/20µs) - In (kA) 5 (Per Line)
Operating State/Fault Indication Green/Red
Total Discharge Current (10/350 µs) - Itotal (kA) 3
Total Discharge Current (8/20µs) - Itotal (kA) 10
Voltage Protection Level - Up (kV) ≤ 1.1 (Line-Line)/≤ 0.8 (Line-PG)
Weight (kg) 0.06
