Product Code: AF265301133

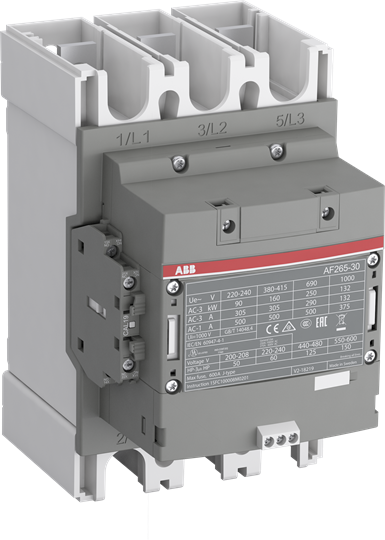

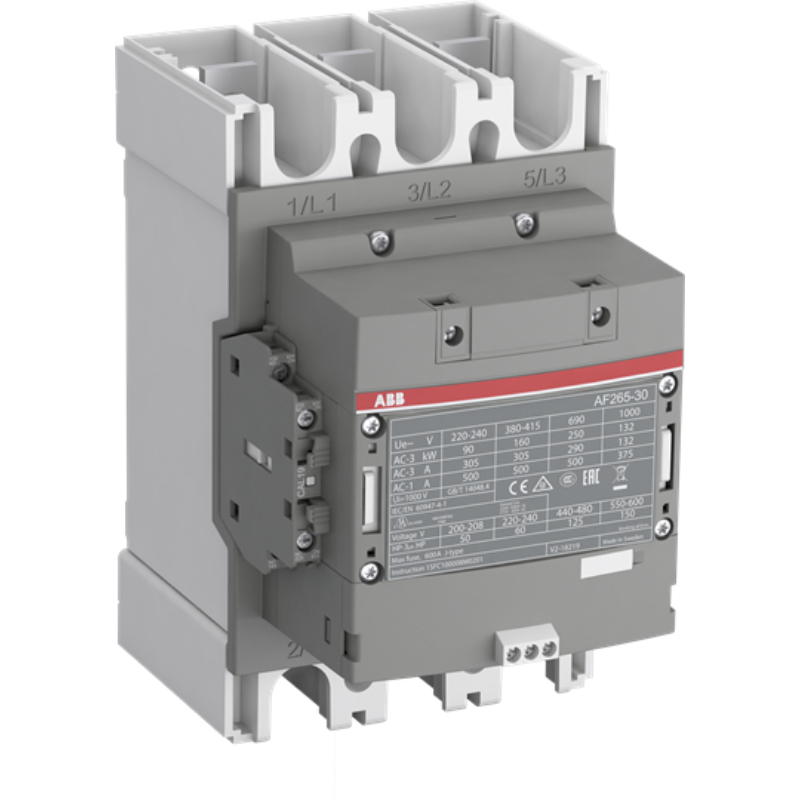

The AF Contactor 3P is a panel mount contactor designed for managing large control voltage variations and ensuring distinct operations in unstable networks. It has a rated operational current of 350 A at 1000V and a rated operational power of 132kW at 400V. The control voltage range is 100 - 250VAC/DC. Additionally, it features built-in auxiliary contacts with 1 normally open (NO) and 1 normally closed (NC) configuration. This contactor is also designed to reduce panel energy consumption.

Rated Operational Current AC-1 1000V (A)	350
Rated Operational Current AC-3 1000V (A)	113
Rated Operational Power AC-3 1000V (kW)	160
Brand	ABB
Auxiliary Contacts	1NO 1NC
Degree of Protection	IP40 (Aux. Terminals)
Dimensions (mm)	140W X 225H X 195.5D
Mounting Type	DIN Rail/Base
No. of Poles	3P
Rated Control Circuit Voltage AC (V)	100 - 250
Rated Control Circuit Voltage DC (V)	100 - 250
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-1 690V (A)	400
Rated Operational Current AC-3 415V (A)	265
Rated Operational Power AC-3 415V (kW)	132
Rated Operational Voltage AC (V)	1000
Terminal Type	Main Circuit: Bars
