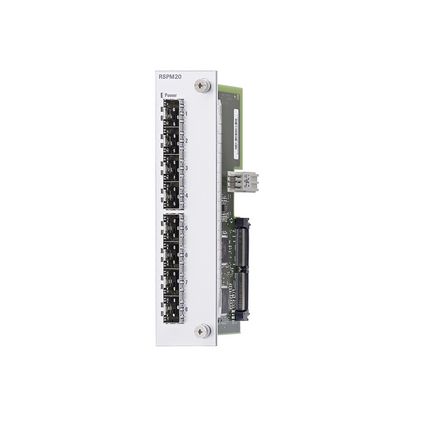

HIRSCHMANN RSPM20 MEDIA MODULE 942 106-999-004

Product Code: 942 106-999-004

The Hirschmann RSPM20 is a robust media module designed for network solutions, falling under the category of switch modules. This unit features dual ports, Port A and Port B, each equipped with 4 SFP slots supporting speeds of up to 100 Mbit/s. Engineered to operate reliably within a temperature range of 0°C to +60°C, it meets stringent CE, FCC, and EU safety standards. The RSPM20 series offers flexibility and durability for various networking applications.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 8
No. of Ethernet Ports 4
No. of Fiber Ports 4
Nominal Power (W) 9
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
No. of Ports 8 x Fast Ethernet SFP
Operational Temperature Range (°C) 0 to +60
Power Consumption (W) 12
Series RSPM20
Standards and Approvals CE, FCC, RCM, EN61131, EN60950
