Product Code: 942 077-999-003

Enhance your network's performance with Hirschmann's MSM Series Switch Modules, designed for the sophisticated demands of modern networking. These managed modular MICE switch power media modules come equipped with Fast Ethernet ports, ensuring high-speed data transmission at 100 Mbit/s through Singlemode FX DSC connectivity. Engineered to operate reliably within a temperature range of 0°C to +60°C, these switch modules are ideal for various industrial environments. Compliance with CE, FCC, and EN 61131 (EN 60950) standards attests to their quality and safety. Optimize your network solutions with the durability and precision of Hirschmann's switch modules.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of 100Mb Ports	4
No. of Fiber Ports	4
Nominal Power (W)	5
Port Quantity and Type	4 x 100BASE-FX
Rated Maximum Operational Voltage DC (V)	48
Rated Minimum Operational Voltage DC (V)	24
Brand	HIRSCHMANN
Cable Type	FX Cable - Single Mode
Connector Type	FX Port - SC
Degree of Protection	IP30
Dimensions (mm)	133H x 38W x 118D
Mounting Type	DIN Rail
Operational Temperature Range (°C)	0 to +60
Power Consumption (W)	5
Series	MSM
Standards and Approvals	C-Tick EN61131, EN60950
Suitable For	PowerMICE Switches (MSP)

Ethernet Switches

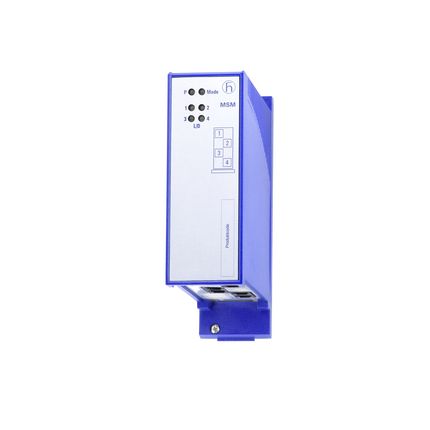

HIRSCHMANN FAST ETHERNET MEDIA MODULE 942 077-999-003

Product Code: 942 077-999-003

Technical Specifications
