Actuating Element	Magnet
Direction of Motion	Head-on to the Active Surface
Door Hinge Position	Left
Installation Conditions	Quasi-flush
Maximum Storage Temperature (°C)	70
Maximum Switching Capacity (VA)	10
Maximum Switching Frequency (Hz)	5
Maximum Switching Voltage DC (V)	75
Minimum Ambient Temperature (°C)	-25
Minimum Storage Temperature (°C)	-25
No. of Cables	6
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Recommended Actuator	BPS 260
Recommended Safety Switchgear	SRB-E-301ST
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Sensor Height (mm)	36
Sensor Length (mm)	13
Sensor Width (mm)	26
Termination	Cable
Brand	SCHMERSAL
Cable Length (m)	5
Degree of Protection	IP67
Housing Material	Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C)	70
Maximum Switching Current (A)	0.4
No. of Normally-closed Contacts	3
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage (V)	50AC
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1
Wire Cross Section (mm²)	0.25mm² (Diameter)

Safety Pushbuttons & Operator Devices

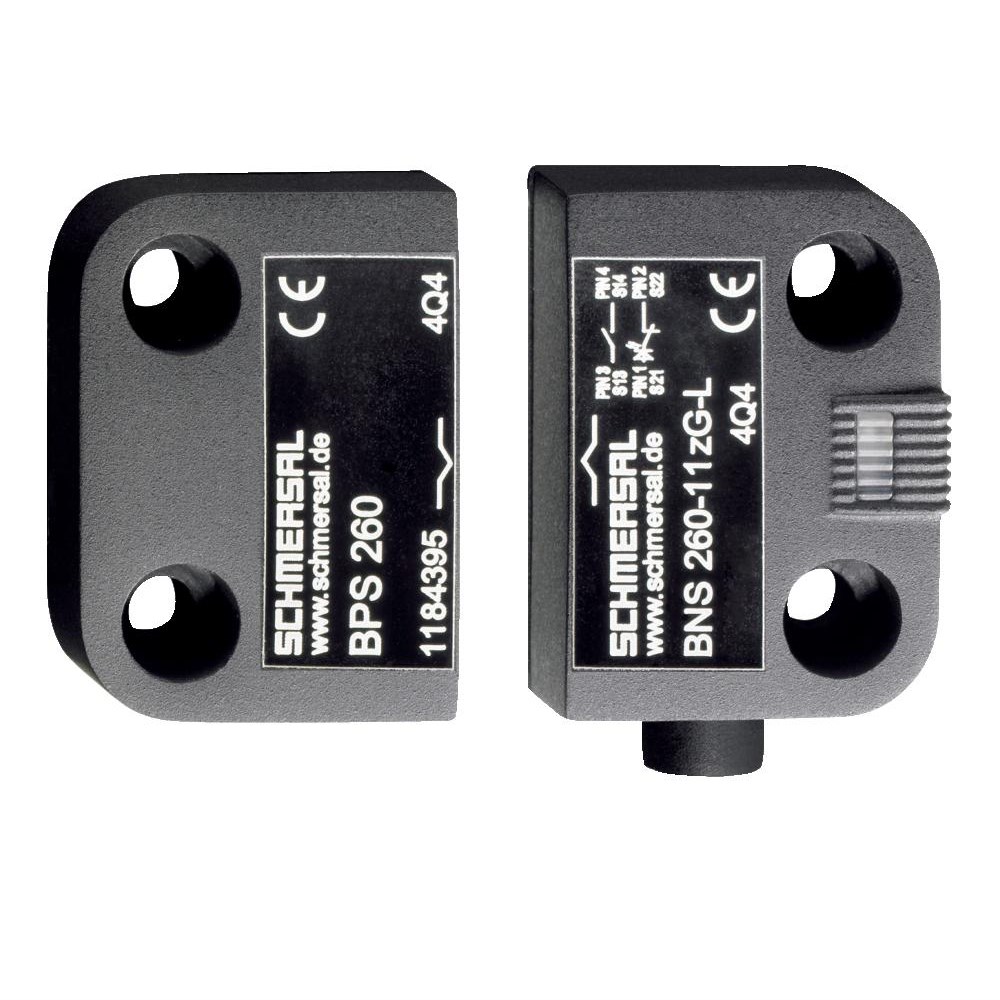

SCHMERSAL BNS 260-02/01Z-L 5.0M 101206142
