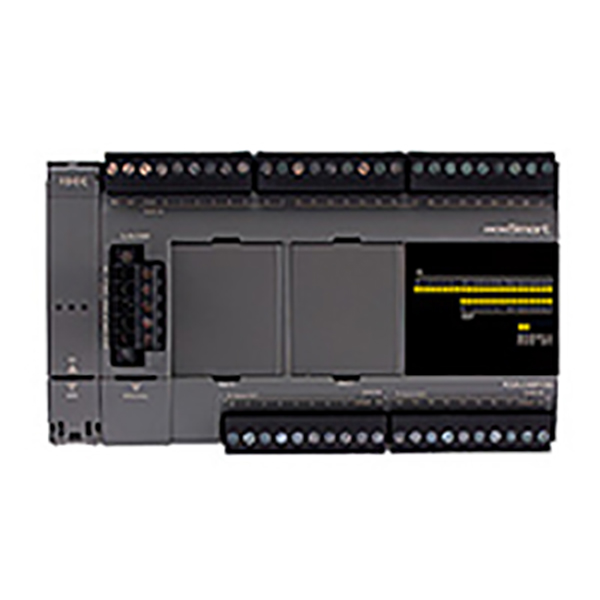

IDEC CPU 24V DC RELAY MICRO SMART PLC FC6A-C40R1CEJ

Product Code: FC6A-C40R1CEJ

The IDEC FC6A-C40R1CEJ is a versatile MicroSmart PLC designed for complex automation tasks. It features 40 I/O with J1939 support, 24VDC power input, and transistor sink outputs. Equipped with an embedded SD memory port, it offers ample data storage and easy program transfer. The unit supports both Modbus TCP and RTU protocols and includes user-selectable RS232C/RS485 interfaces for flexible connectivity. Advanced capabilities such as data logging and web server functions are integrated, alongside substantial programming and data memory space. This PLC is certified with cULus CE Class 1 Div 2 for safe operation in hazardous environments.

Technical Specifications

Maximum Analog Inputs 126
Maximum Digital Inputs 250
No. of Ethernet Ports 1
No. of Inputs 24
No. of Outputs 16
Operating Voltage DC (V) 24
Programming Language Ladder, Script
Timer Function 1024
Voltage Range (DC) 20.4 to 28.8
Voltage Range AC (V) 85 to 264
Brand IDEC
Dimensions (mm) 106.5W x 163H x 84.3D
Operational Temperature Range (°C) -25 to 65
Power Consumption (W) 5
Rated Frequency (Hz) 50/60
Warranty Period (Months) 36
Weight (g) 530
