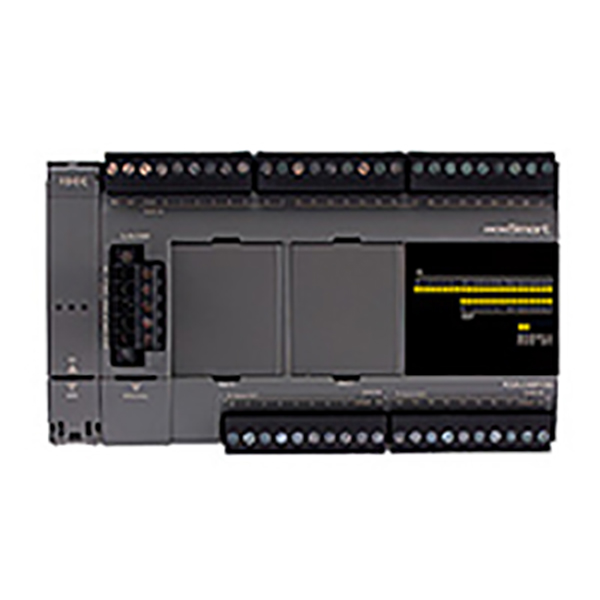

IDEC CPU 12V DC SOURCE MICRO SMART PLC FC6A-C40P1DEJ

Product Code: FC6A-C40P1DEJ

The IDEC FC6A-C40P1DEJ MicroSmart PLC is a versatile and powerful controller designed for complex automation tasks. It features 40 I/O points with J1939 support, 24VDC power supply, and transistor sink outputs. This unit includes an embedded SD memory port for expanded storage, Modbus TCP and RTU capabilities, as well as selectable RS232C/RS485 communication options. With data logging functionality and web server capabilities, it offers extensive programming and data memory space. Certified with cULus CE Class 1 Div 4, it ensures safe operation in demanding industrial environments.

Technical Specifications

Maximum Analog Inputs 126
Maximum Digital Inputs 250
No. of Ethernet Ports 1
No. of Inputs 24
No. of Outputs 16
Operating Voltage DC (V) 12
Programming Language Ladder, Script
Timer Function 1024
Voltage Range (DC) 10.2 to 18
Voltage Range AC (V) 85 to 264
Brand IDEC
Dimensions (mm) 106.5W x 163H x 84.3D
Operational Temperature Range (°C) -25 to 65
Power Consumption (W) 3.9
Rated Frequency (Hz) 50/60
Warranty Period (Months) 36
Weight (g) 530
