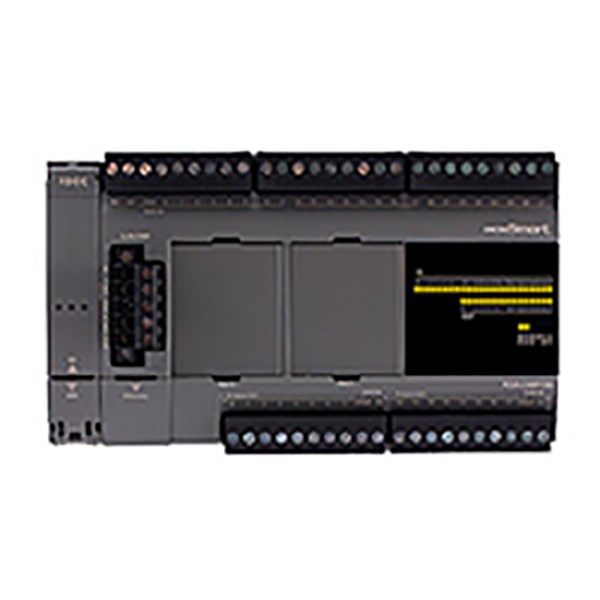

IDEC CPU 12VDC SINK MICRO SMART PLC FC6A-C40K1DEJ

Product Code: FC6A-C40K1DEJ

The IDEC FC6A-C40K1DEJ is a MicroSmart PLC designed for advanced control applications. It features 40 I/O with J1939 support, 24VDC power supply, and transistor sink outputs. This PLC is equipped with an embedded SD memory port, Modbus TCP and RTU capabilities, as well as selectable RS232C/RS485 communication interfaces. It offers data logging and web server functions, along with substantial programming and data memory space. Certified with cULus CE Class 1 Div 4, it ensures safe operation in demanding industrial environments.

Technical Specifications

No. of Ethernet Ports 1
No. of Inputs 24
No. of Outputs 16
Operating Voltage DC (V) 12
Programming Language Ladder, Script
Timer Function 1024
Voltage Range (DC) 10.2 to 18
Voltage Range AC (V) 85 to 264
Brand IDEC
Dimensions (mm) 106.5W x 163H x 84.3D
Operational Temperature Range (°C) -25 to 65
Power Consumption (W) 3.9
Rated Frequency (Hz) 50/60
Warranty Period (Months) 36
Weight (g) 530
