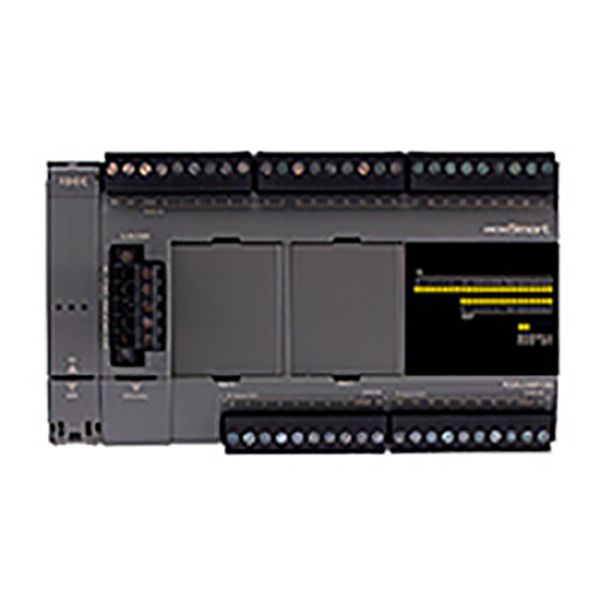

IDEC CPU 12V DC RELAY MICRO SMART PLC FC6A-C40R1DEJ

Product Code: FC6A-C40R1DEJ

The IDEC FC6A-C40R1DEJ is a versatile MicroSmart PLC designed for complex automation tasks. It features 40 I/O with J1939 support, 24VDC power supply, and transistor sink output for robust control. The unit includes an embedded SD memory port, Modbus TCP and RTU capabilities, as well as selectable RS232C/RS485 communication options. Advanced functions such as data logging and web server capabilities are integrated, alongside substantial programming and data memory. This PLC is certified with cULus CE Class 1 Div 2 standards for safe operation in demanding industrial environments.

Technical Specifications

Maximum Analog Inputs 126
Maximum Digital Inputs 250
No. of Ethernet Ports 1
No. of Inputs 24
No. of Outputs 16
Operating Voltage DC (V) 12
Programming Language Ladder, Script
Timer Function 1024
Voltage Range (DC) 10.2 to 18
Voltage Range AC (V) 86 to 264
Brand IDEC
Dimensions (mm) 106.5W x 163H x 84.3D
Power Consumption (W) 4.08
Rated Frequency (Hz) 50/60
Warranty Period (Months) 36
Weight (g) 560
