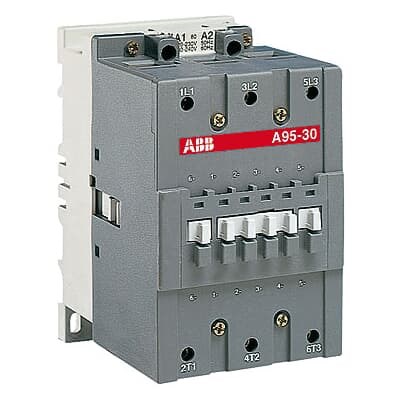

Cable Sections - Auxiliary Circuit |
Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 2x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 2 x 1 .... 4 mm² |
|
Cable Sections - Main Circuit |
Bar 30 mm²
Flexible with Cable End 2 x 6 ... 35 mm²
Rigid 1 x 10 ... 95 mm² |
|
Coil Consumption |
Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 26 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A |
|
Coil Operating Limits |
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
|
Maximum Breaking Capacity |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A |
|
Maximum Electrical Switching Frequency |
240 cycles per hour |
|
Maximum Mechanical Switching Frequency |
3600 cycles per hour |
|
Mechanical Durability |
10 million |
|
No. of Main Contacts |
3 NO |
|
Rated Control Voltage |
50 Hz 230 ... 240 V
60 Hz 240 ... 260 V |
|
Rated Insulation Voltage |
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V |
|
Rated Operational Power AC-23A (kW) |
(380 / 400 V) 45 kW |
|
Rated Short-time Withstand Current Low Voltage - Icw (A) |
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 160 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A |
|
Type of Mounting |
M8 hexagon socket screw with single connector |
|
Brand |
ABB |
|
Conventional Free-Air Thermal Current - Ith (A) |
acc. to IEC 60947-4-1, Open Contactors T = 40 °C 145 A |
|
Degree of Protection |
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
|
Dimensions (mm) |
148 * 90 * 123.5 [H*W*D] |
|
Rated Impulse Withstand Voltage (kV) |
Main Circuit 8 kV |
|
Rated Operational Voltage AC (V) |
Main Circuit 1000 V |
|
Terminal Type |
Cable Clamp |
