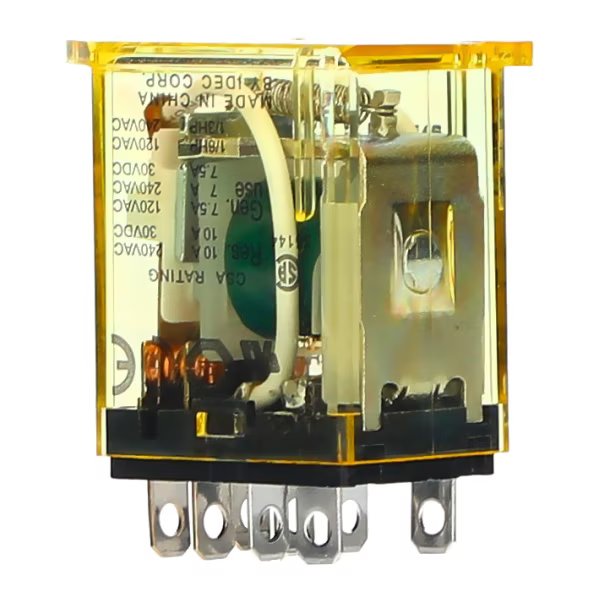

IDEC TOP-MOUNT RELAY DPDT 24V INPUT 30mA MIN LOAD @24V 10A BLADE PLUG-IN TYPE RH2B-UTAC24V

Product Code: RH2B-UTAC24V

The IDEC RH2B-UTAC24V is a top-mount, double-pole double-throw (DPDT) relay designed for high-capacity switching with a 10A contact capacity. It operates on a 24V input with a minimum load of 30mA at 24V. This blade plug-in type relay is compact in size, making it ideal for space-saving applications while providing reliable power control.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage AC (V) 24
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
