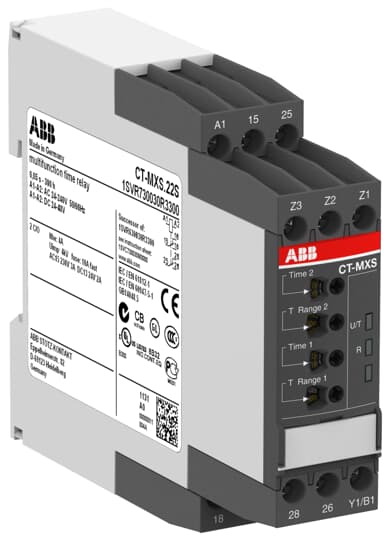

ABB TIMER MULTI FUNCTION 2 C/O CT-MXS.22S

Product Code: CT-MXS.22S

The CT-MXS.22S is a multifunction electronic time relay from the CT-S timer range. It provides 5 timing functions with 2 x 10 time ranges from 0.05s to 300h. This time relay operates with a rated control supply voltage of 24 - 48V DC / 24 - 240V AC and has a 2 C/O (SPDT) output with contacts rated at 250V/4A. A control input works with voltage-related (non-floating) triggering. The CT-MXS.22S offers the possibility of connecting two remote potentiometers for the fine adjustment of the time delays. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

Technical Specifications

Minimum Switching Capacity (mA) 100
Minimum Switching Capacity DC (V) 12
Rated Operational Current AC-12 230V (A) 4
Rated Operational Current AC-15 230V (A) 3
Rated Operational Current DC-12 24V (A) 4
Rated Operational Current DC-13 24V (A) 2
Brand ABB
Connecting Capacity Flexible with Ferrule 1 x 0.5 - 2.5mm² Flexible with Ferrule 2 x 0.5 - 1.5mm² Flexible with Insulated Ferrule 1 x 0.5 - 2.5mm² Flexible with Insulated Ferrule 2 x 0.5 - 1.5mm² Flexible 1 x 0.5 - 2.5mm² Flexible 2 x 0.5 - 1.5mm² Rigid 1 x 0.5 - 4mm² Rigid 2 x 0.5 - 2.5mm²
Recommended Screwdriver 0.8 x 4, 4.5, Pozidriv 1
Ambient Temperature Range (°C) -25 to 60
Degree of Protection Housing: IP50, Terminals: IP20
Dimensions (mm) 22.5W x 85.6H x 103.7D
Outputs 2 x Change-over (SPDT) Contacts
Overvoltage Category III
Pollution Degree 3
Rated Control Supply Voltage AC (V) 24 - 240
Rated Control Supply Voltage DC (V) 24 - 48
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) Input Circuit: 4kV, Output Circuit 1/2: 4kV
Rated Insulation Voltage (V) Input/Output Circuit: 500V, Output Circuit 1/2: 300V
Rated Operational Voltage (V) Auxiliary Circuit: 250V
Relay Type Pulse Generator Single Pulse Generator Asymmetrical ON - and OFF - Delay ON/OFF Function Impulse ON/OFF
Standards and Approvals IEC/EN 63000, IEC/EN 61812-1, UL 508
Storage Temperature Range (°C) -40 to 85
Terminal Type Screw
Tightening Torque (Nm) 0.6 - 0.8
Time Ranges 0.05s - 300h
Weight (kg) 0.142
Wire Stripping Length (mm) 8
