Brand	DEHN
Clamping Range Rd/Fl (mm)	16 / 30-40
Clamping Range Rd/Rd (mm)	7-10 /16
Class (Lightning Current Carrying Capability) (kA)	100
Conductor Diameter (mm)	7
Lid Screw Type	Flat Round Screw
Lightning current load-bearing capacity (10/350µs)	100
Surface Protection	Hot-dip Galvanized
Connector Type	Cross Connector
Dimensions (mm)	108W x 30H x 3D
Material	Steel
Reference No.	308330
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Weight (kg)	0.266

Lightning & Surge Protection

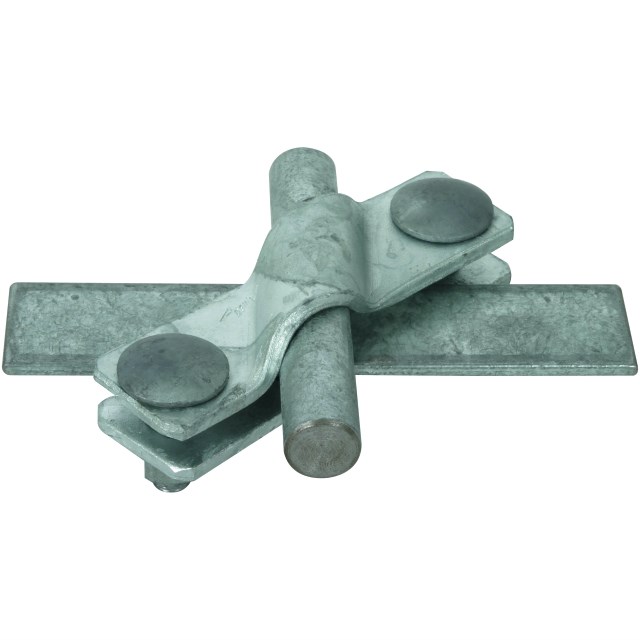

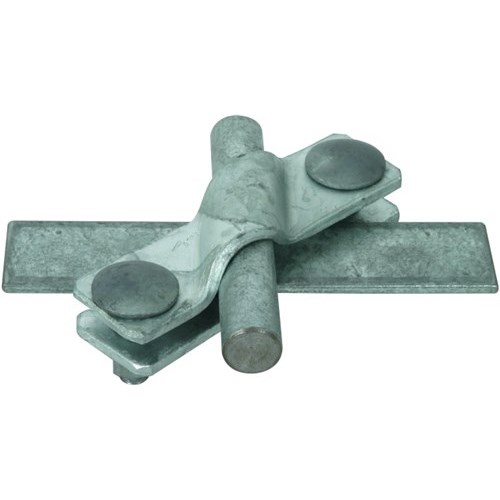

DEHN SV CLAMP ST/TZN F. RD 7-10/16MRD 16/FL 40mm 308330
