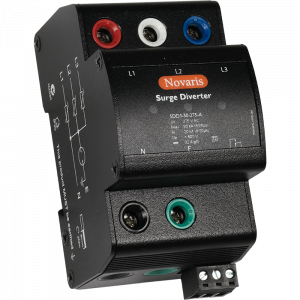

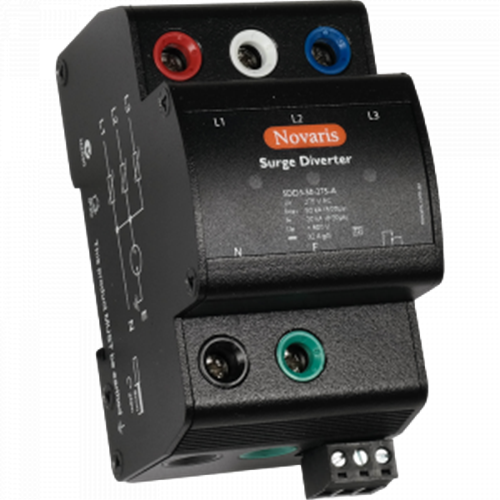

NOVARIS SURGE DIVERTER 3P+N+PE 150kA SDD3-150-275-A

Product Code: SDD3-150-275-A

The Surge Diverter is a 3-phase device designed for domestic MSBs and industrial DBs. It provides protection against voltage surges with a nominal voltage of 230 VAC and a maximum continuous voltage of 275 VAC. The surge diverter has a maximum discharge current of 150kA (L-N) and 60kA (N-PE) at 8/20ms. It offers a voltage protection level of less than 1.25kV (L-N) and less than 1.3kV (N-PE) when operating at its rated current. The surge diverter features a shunt connection and active alarms for monitoring purposes. Its LED display indicates the phase status and normal operation when all LEDs are lit.

Technical Specifications

Brand NOVARIS
Series SDD3
Lightning Impulse Current (10/350 µs) - Iimp (kA) 12.5 (L-N), 50 (N-PE)
Mounting Type DIN rail
Operational Temperature Range (°C) -40 to 80
Alarm Contact Yes
Connection Type Shunt
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N), 260 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 150 (L-N), 60 (N-PE)
No. of Phases 3
No. of Poles 3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 40 (L-N), 50 (N-PE)
Nominal Voltage AC (V) 230
Dimensions (mm) 95H x 72W x 80D
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.8 (L-N)
Voltage Protection Level - Up (kV) <1.25 (L-N), <1.3 (N-PE)
Degree of Protection IP20
Standards and Approvals IEC 61643-1, AS/NZS 1768
