Current Consumption	< 100 mA [during run] 10 A [at power-up]
EMC Classification	Class B
Heat Dissipation	During Start: 3 watts / ampere During Run: 10 watts typical
Mains Frequency (at start)	45 Hz to 66 Hz
Mains Supply	3 x 200 VAC ~ 440 VAC (+ 10% / - 15%)
Motor Designation	Bypassed semiconductor motor starter form 1
Rated Control Voltage	110-240 VAC (+ 10% / - 15%) or 380-440 VAC (+ 10% / - 15%)
Rated Insulation Voltage	600 VAC
Rated Power (kW)	7.5
Short Circuit Withstand Level (kA)	5
Vibration	IEC 60068 Test Fc Sinusoidal 4 Hz to 13.2 Hz: ± 1 mm displacement 13.2 Hz to 200 Hz: ± 0.7 g
Brand	AuCom
Current Rating (A)	18
Degree of Protection	IP20
Humidity	5% to 95% Relative Humidity
Operational Temperature Range (°C)	- 10 °C to + 60 °C
Pollution Degree	3
Standards	IEC 60947-4-2 (RCM), EN 60947-4-2 (CE), GB 14048.6 (CCC), TP TC 004/2011, TP TC 020/2011 (EAC), Lloyds Marine No 1 Specification (Marine), UL 508 (UL / C-UL)

Soft Starters

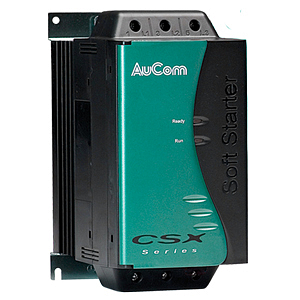

AuCom SS 7KW 18A 440VAC W/O MT PROT 240/415VAC CONTROL C/W BYPASS CSX-007-V4-C1
