Product Code: CSXi045V4C2

The compact and lightweight soft starter is designed with an integrated bypass contactor and motor protection. It operates on a 200-440V AC input and has a control voltage of 24V AC/DC. The current ratings for medium-duty applications are 85A, while heavy-duty applications have a rating of 73A. The soft starter can handle a motor power of up to 45kW and offers several adjustments for enhanced control. It also features plug-in communication interfaces for easy connectivity. The dimensions of the soft starter are 145mm (width) x 215mm (height) x 193mm (depth).

Brand	AuCom
Current Consumption (A)	2 (At power-up)
Degree of Protection	IP20
Dimensions (mm)	145W x 215H x 193D
EMC Emission	Equipment Class - A
Heat Dissipation During Run (W)	10 (Typical)
Heat Dissipation During Start (W/A)	3
Input Voltage AC (V)	Start: NO 300 (Max.)/ Stop: NC 300 (Max.)
Motor Power - Medium Duty 400-415V (kW)	45
Operational Temperature Range (°C)	-10 to +60
Pollution Degree	3
Rated Control Supply Voltage AC/DC (V)	24
Rated Current - Heavy Duty (A)	73
Rated Current - Medium Duty (A)	85
Rated Supply Voltage AC (V)	200 - 440
Standards and Approvals	C-tick, UL / C-UL, CE, CCC, Lloyds

Soft Starters

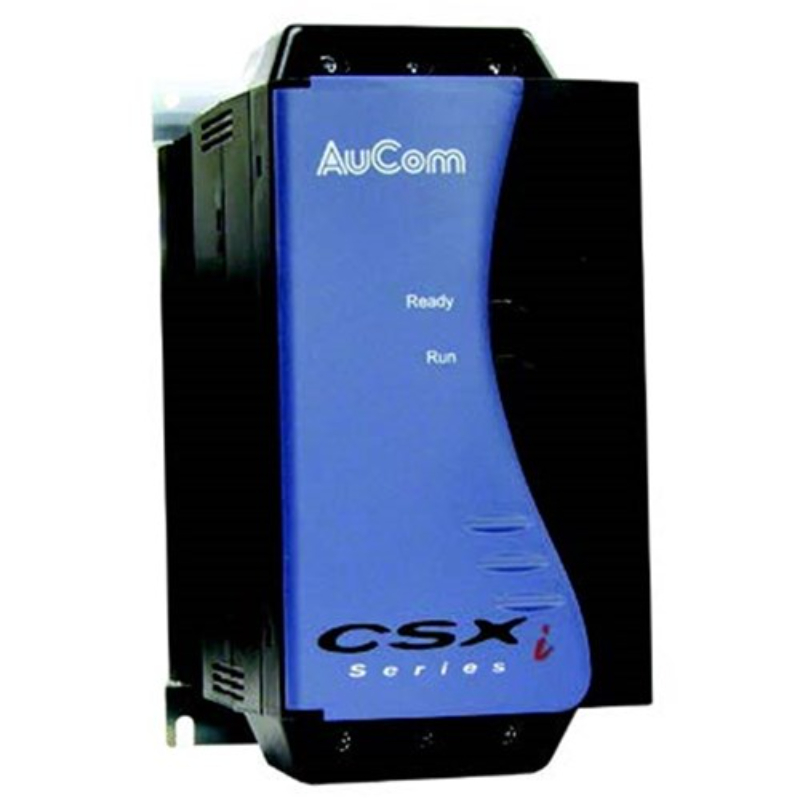

AuCom CSXi045V4C2 SOFT STARTER 45KW 85A 200-440VAC, CONTROL 24VAC/DC
