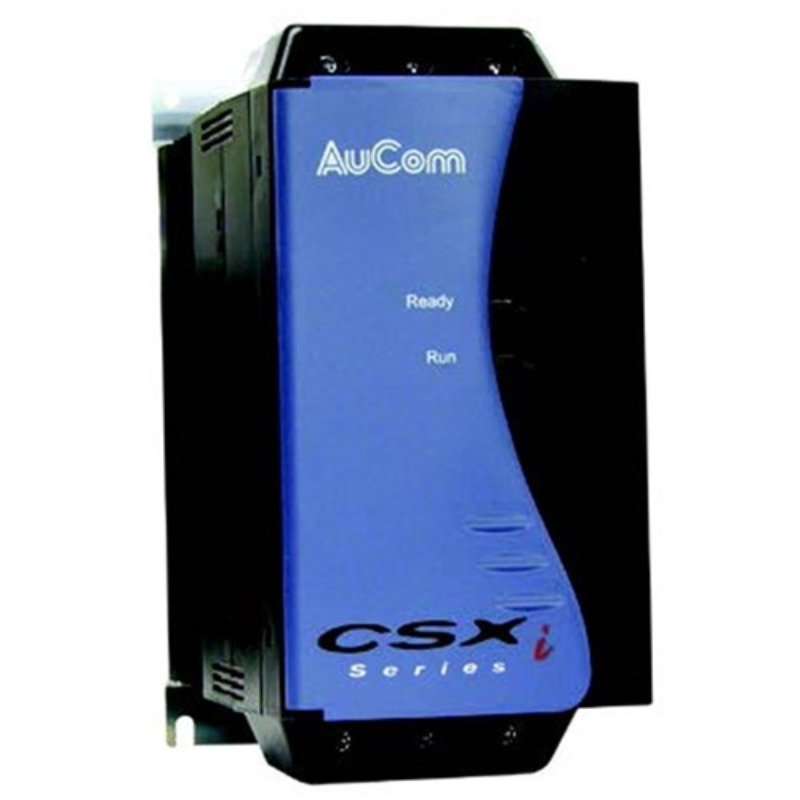

Product Code: CSXi110V4C1

The compact and lightweight soft starter is equipped with an integrated bypass contactor and motor protection. It has an AC input voltage range of 200-440V and a control voltage range of 110-240/380-440V. The current ratings are 200A for medium-duty and 165A for heavy-duty applications, with a motor power of 110kW. The soft starter offers several adjustments for enhanced control and features plug-in communication interfaces. Its dimensions are 202mm in width, 240mm in height, and 214mm in depth.

Brand	AuCom
Degree of Protection	IP00
Dimensions (mm)	202W x 240H x 214D
Motor Power - Medium Duty 400-415V (kW)	110
Operational Temperature Range (°C)	-10 to +60
Rated Control Supply Voltage AC (V)	110- 240/380 - 440
Rated Current - Heavy Duty (A)	165
Rated Current - Medium Duty (A)	200
Rated Supply Voltage AC (V)	200 - 440

Soft Starters

AuCom CSXi110V4C1 SOFT STARTER 110kW 200A 200-440VAC, CONTROL 110-240/380-440VAC

Product Code: CSXi110V4C1

Technical Specifications
