IDEC SAFTY INTERLOCK 3NC 1m CABLE SAFETY_SWITCH HS6B-03B01

Product Code: HS6B-03B01

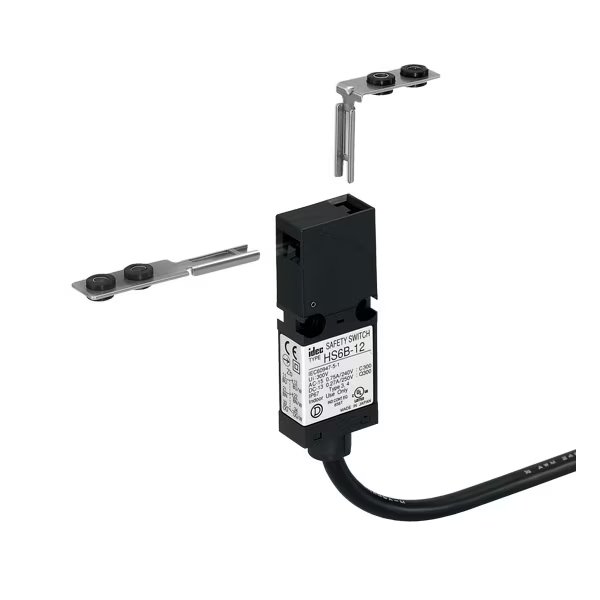

The IDEC HS6B-03B01 Safety Interlock Switch ensures high safety standards with its 3NC contact configuration and a 1-meter integral molded cable for quick installation. It features watertight sealing for reliable performance in demanding environments, with housing designed to allow drainage. The Direct Opening Action mechanism guarantees disconnection of contacts under all conditions, compliant with IEC/EN60947-5-1 standards. Additionally, the keys are designed in accordance with ISO14119 and EN1088 regulations. With a B10d value of 2 million, this safety switch promises a long operational life.

Technical Specifications

Brand IDEC
Cable Length (m) 1
Contacts 3
Degree of Protection IP67
Dimensions (mm) 30W x 15H x 78D
Housing Colour Black
Minimum Electrical Life 100000
Minimum Mechanical Life 1000000
Operational Temperature Range (°C) -25 to 70
Pollution Degree 3
Rated Insulation Voltage (V) 300
Rated Thermal Current - Ith (A) 2.5
Weight (g) 120
