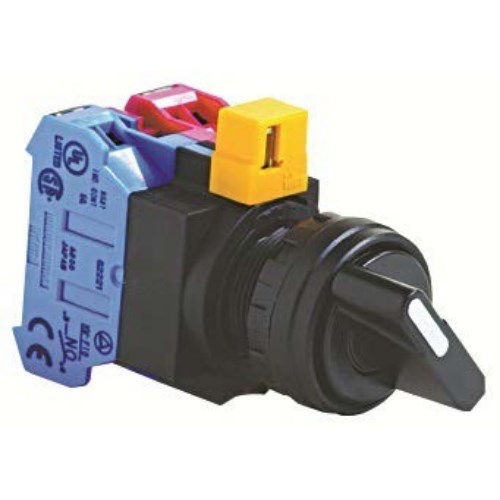

IDEC HW1S-2TF20-K SELECTOR SWITCH 2 POSITION 2NO KNOB MAINTAINED

Product Code: HW1S-2TF20-K

The IDEC HW1S-2TF20-K Selector Switch is a robust control device featuring a 2-position knob-operated mechanism with dual Normally Open (NO) contacts. Engineered for 22mm mounting, this switch ensures reliable operation and easy installation. It boasts an IP20 rating, signifying protection against touch by fingers and solid objects, enhancing safety in various industrial applications.

Technical Specifications

Brand IDEC
Contacts 2NO
Degree of Protection IP65 (Front), IP20 (Terminals)
Insulation Resistance (MO) 100
Mode of Operation Maintained
Mounting Hole Diameter (mm) 22
No. of Positions 2
Operational Temperature Range (°C) -25 to +60
Pollution Degree 3
Rated Continuous Current (A) Contact Rating - 10
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) Contact Rating - 600
Series HW
Terminal Type Screw (M3.5)
Tightening Torque (Nm) Locking Ring - 2.0
