Product Code: 101182706

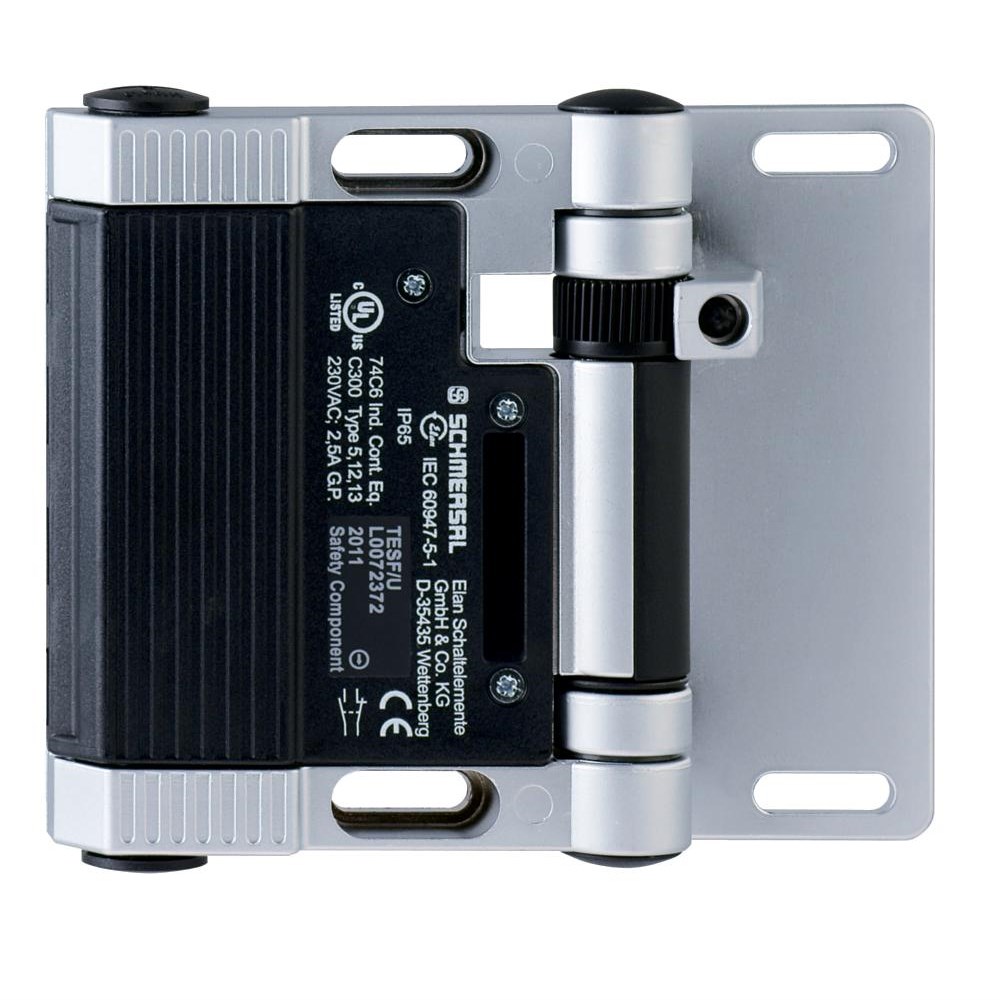

Enhance machine safety with the Schmersal TESF Series Safety Switch. This robust hinge safety switch features a durable metal enclosure and an adjustable switching angle for versatile installation. Equipped with two auxiliary contacts and two safety contacts, it ensures reliable operation. The switch includes both NO and NC contact elements, catering to diverse circuitry requirements. With a screw connection terminal connector, it offers secure wiring. Rated for a thermal test current of 2.5 A, it operates efficiently at 230 VAC under AC-15 utilization category with a capacity of 2 A, and at 24 VDC under DC-13 utilization category with a capacity of 1 A. Trust in Schmersal's commitment to machine safety with this dependable safety switch solution.

eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	616
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	4 A gG D-fuse to DIN EN 60269-1
Maximum Temperature (°C)	65
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	297.8
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	30
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1 x 1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	400
Series	TESF
Standards	EN 81-20 / EN 81-50
Terminal Type	Screw terminals M20 x 1.5
