SCHMERSAL POSITION SWITCH 101169534

Product Code: 101169534

Technical Specifications

Brand SCHMERSAL
Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Gross Weight (g) 152.69
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse quick blow
Minimum Ambient Temperature (°C) -25
Net Weight (g) 60
No. of Auxiliary Contacts 1
No. of Safety Contacts 4
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 160.5
Sensor Length (mm) 41
Switching Element NO contact, NC contact
Switching Principle Magnet Snap Action | Electromagnetic reset |
Latching
Utilisation Category DC-13 | AC-15
Working Principle Magnetic drive

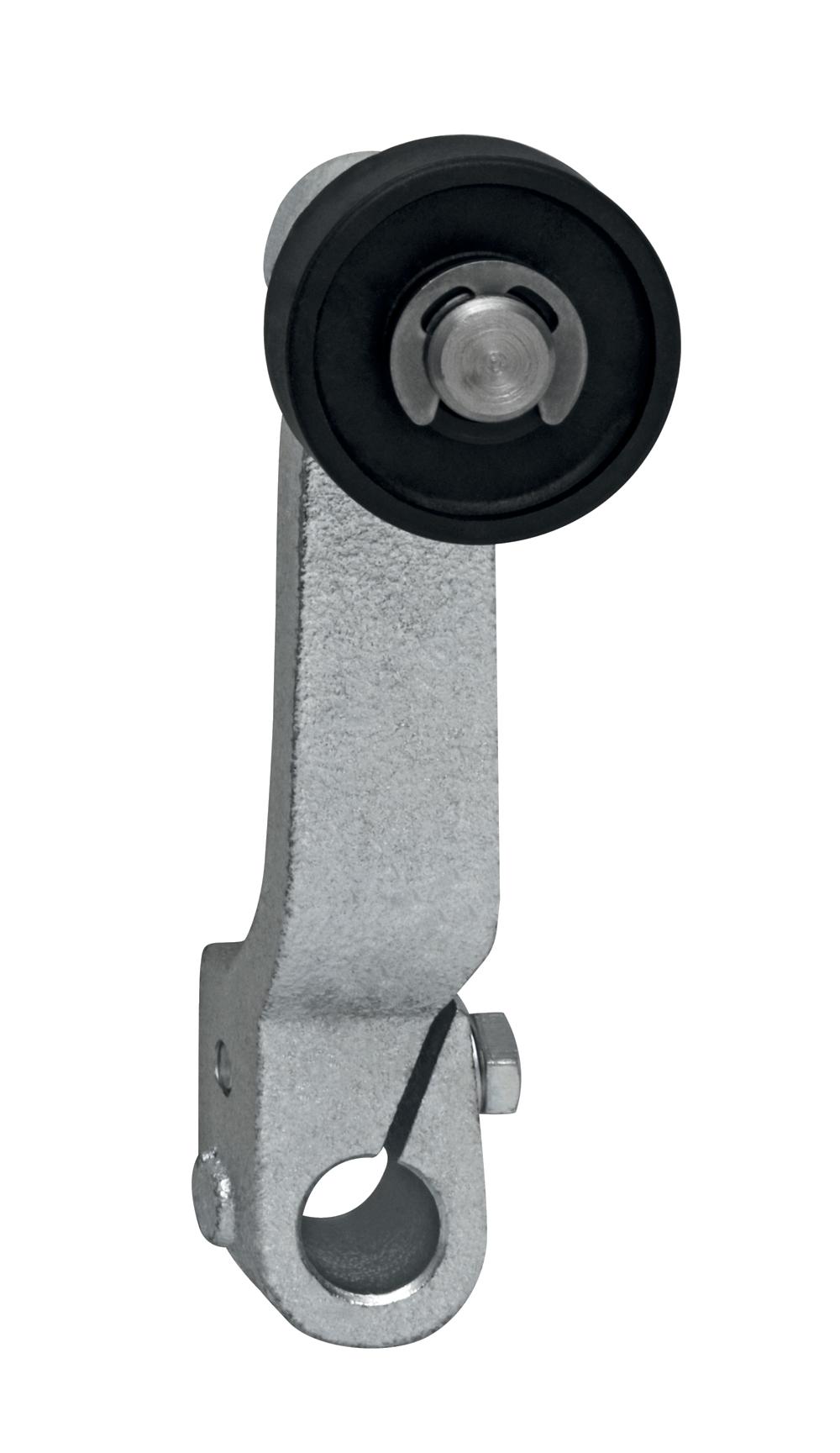

Actuator Type Angle roller lever K240
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Aluminium
Maximum Ambient Temperature (°C) 75
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 2 x 0.75
Minimum Mechanical Life 30000000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 30
Standards EN IEC 60947-5-1 / BG-GS-ET-15
Terminal Type Screw terminals M20 x 1.5
