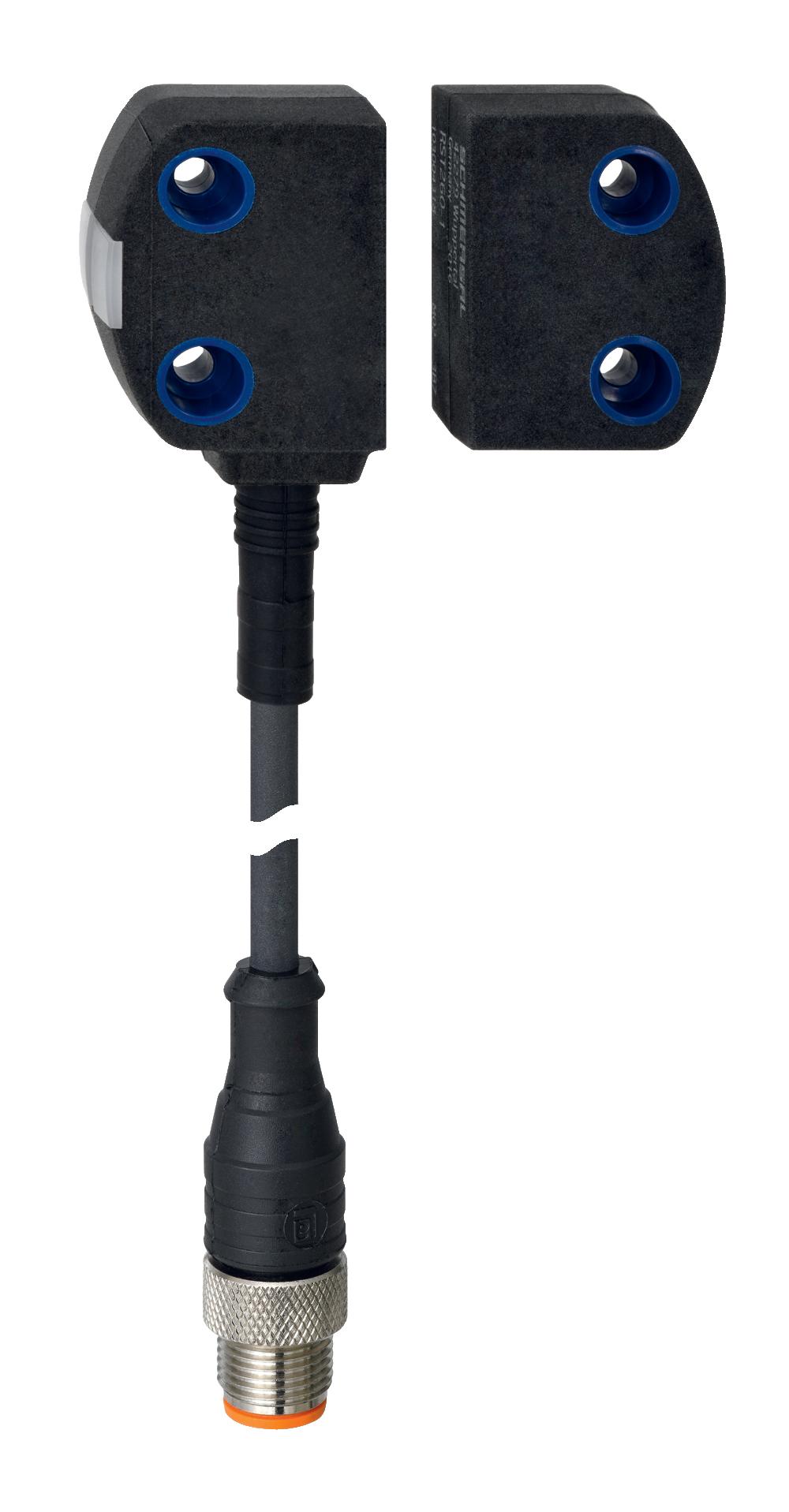

Brand |
SCHMERSAL |
|
Actuator Reaction Time (ms) |
100 |
|
Design of Control Element |
Short-circuit Proof |
|
Duration of Risk (ms) |
200 |
|
Installation Conditions |
Not Flush |
|
Maximum Leakage Current (mA) |
0.5mA (Safety Digital Outputs) |
|
Maximum Reaction Time (ms) |
100 |
|
Maximum Storage Temperature (°C) |
85 |
|
Maximum Switching Frequency (Hz) |
1 |
|
Maximum Voltage Drop (V) |
1 |
|
Minimum Ambient Temperature (°C) |
-25 |
|
Minimum Storage Temperature (°C) |
-25 |
|
Performance Level |
e |
|
Power Supply Type |
Stabilised PELV power supply |
|
Rated Operating Current (mA) |
150mA (Diagnostic Output) |
|
Rated Operational Current (mA) |
600 |
|
Rated Operational Current DC-12 (A) |
0.25A (Safety Digital Outputs) |
|
Rated Operational Current DC-13 (A) |
0.25A (Safety Digital Outputs), 0.05A (Diagnostic Outputs) |
|
Rated Operational Voltage DC-12 (V) |
24V (Safety Digital Outputs) |
|
Rated Operational Voltage DC-13 (V) |
24V (Safety Digital Outputs) |
|
Rated Short-circuit Current (A) |
100 |
|
Recommended Actuator |
RST16-1 |
|
Repeat Accuracy (mm) |
0.5 |
|
Resistance to Shock (g/ms) |
30g / 11ms |
|
Resistance to Vibrations |
10 ... 55Hz, Amplitude 1mm |
|
RFID Transmission Frequency (kHz) |
125 |
|
RFID Transmitter Output (dB/m) |
-6 |
|
Safety Functions |
Yes |
|
Sensor Height (mm) |
18 |
|
Sensor Length (mm) |
29.5 |
|
Sensor Width (mm) |
39.2 |
|
Series Wiring |
Yes |
|
Switching Frequency (Hz) |
1 |
|
Termination |
Connector M12, 8-Pole, A-Coded |
|
Time to Readiness (ms) |
2000 |
|
Voltage Type |
DC |
|
Degree of Protection |
IP67 |
|
Housing Material |
Plastic, Thermoplastic, Self-extinguishing |
|
Maximum Ambient Temperature (°C) |
65 |
|
No. of Poles |
8 |
|
Overvoltage Category |
3 |
|
Pollution Degree |
3 |
|
Rated Impulse Withstand Voltage (kV) |
0.8 |
|
Rated Operational Voltage (V) |
24V DC -15%/+10% |
|
Rated Operational Voltage DC (V) |
26.4 |
|
Standards and Approvals |
EN IEC 60947-5-3, EN IEC 60947-5-3 |
