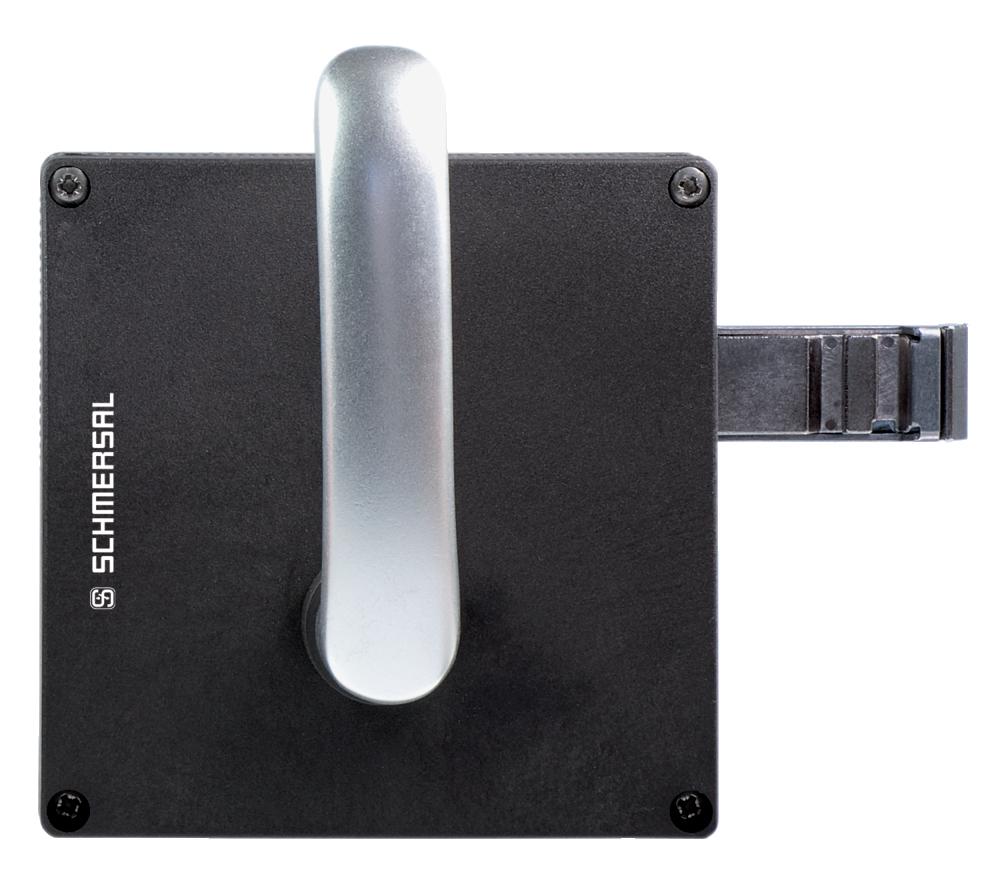

SCHMERSAL AZ/AZM201-B30-LTAG1 SOLENOID INTERLOCK 103013501

Product Code: 103013501

Enhance machine safety with the Schmersal AZM201 series solenoid interlock, designed for hinged guards with a left door hinge orientation. This robust actuator features an external mounting position and comes equipped with a convenient handle for easy operation. Its compact dimensions are 60x115x115 mm, ensuring it fits seamlessly into your safety system setup. Trust in Schmersal's commitment to reliable machine safety solutions.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 27-27-24-02
eCl@ss Number, Version 9.0 27-27-24-02
ETIM 6.0 EC002544
ETIM 7.0 EC002544
Gross Weight (g) 88.68
Minimum Ambient Temperature (°C) -25
Net Weight (g) 153
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Degree of Protection IP66 / IP67
EAN 4030660000000
Enclosure Material Thermoplastic, Polyamide PA 6 GF
Maximum Ambient Temperature (°C) 80
Series AZM201
Standards EN ISO 13849-1
Terminal Type Connector M23, 8+1-pole
