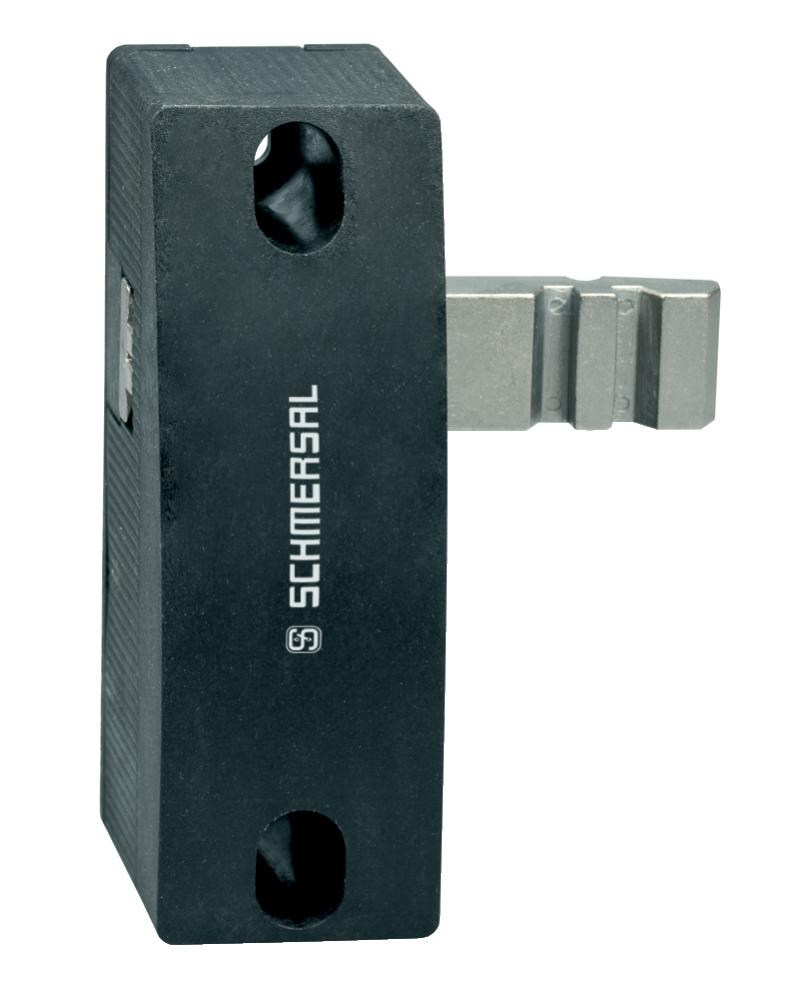

SCHMERSAL AZ/AZM201-B1-LT SOLENOID INTERLOCK 103013493

Product Code: 103013493

Ensure the safety and functionality of your machinery with the Schmersal AZM201 series solenoid interlock. This robust actuator is specifically designed for sliding guards, with an actuating direction to the left. Its compact dimensions of 50x84x115 mm allow for easy integration into your safety system. As part of Schmersal's commitment to machine safety, this actuator delivers reliable performance in securing hazardous areas.

Technical Specifications

eCl@ss Number, Version 11.0 27-27-24-02
eCl@ss Number, Version 9.0 27-27-26-03
ETIM 6.0 EC002544
ETIM 7.0 EC000030
Explosion Protection Category 3D | 3G
Gross Weight (g) 55
Minimum Ambient Temperature (°C) -25
Net Weight (g) 150
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Brand SCHMERSAL
Degree of Protection IP54
EAN 4030660000000
Enclosure Material Thermoplastic, Polyamide PA 6 GF
Maximum Ambient Temperature (°C) 50
Series AZM201
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / EN IEC 61508 / EN IEC 62026-2
Terminal Type Connector M23, 8+1-pole
