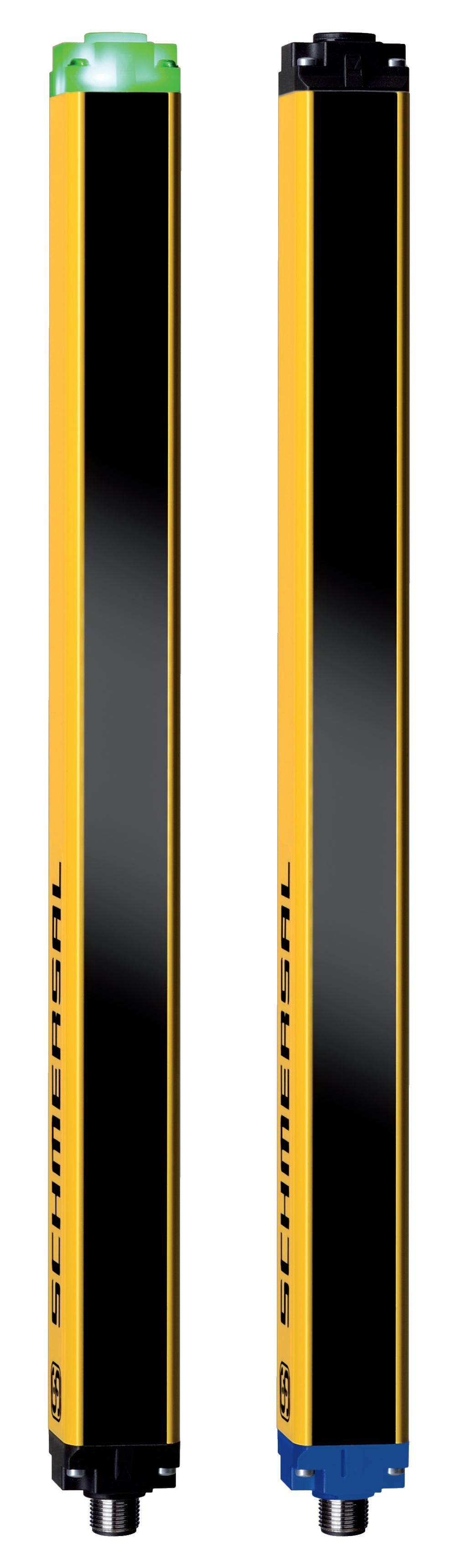

SCHMERSAL SLC440COM-ER-1210-14 SAFETY LIGHT CURTAIN 103003906

Product Code: 103003906

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for reliability, this system features 120 beams and a detection ability of 14 mm, ensuring precise perimeter guarding. The protection field stands at a height of 1210 mm, suitable for a variety of applications. With integral system diagnostics and restart interlock functionality, it ensures operational integrity. The unit is equipped with two fail-safe digital outputs and utilizes a convenient connector terminal for easy integration. Operating on a standard 24 VDC power supply, it maintains efficiency with a low electrical power consumption of just 10 W. Trust in the Schmersal brand to safeguard your machinery without compromising on performance.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 27-27-26-02
eCl@ss Number, Version 9.0 27-27-26-02
ETIM 6.0 EC002592
ETIM 7.0 EC002594
Gross Weight (g) 1540
Maximum Temperature (°C) 50
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -10
Net Weight (g) 1640
Nominal Power (W) 10
Rated Maximum Operational Voltage DC (V) 24
Sensor Height (mm) 35
Sensor Length (mm) 16.6
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C) 60
Minimum Mechanical Life 30000000 Operations
Series SLC
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type Screw terminals M20 x 1.5
