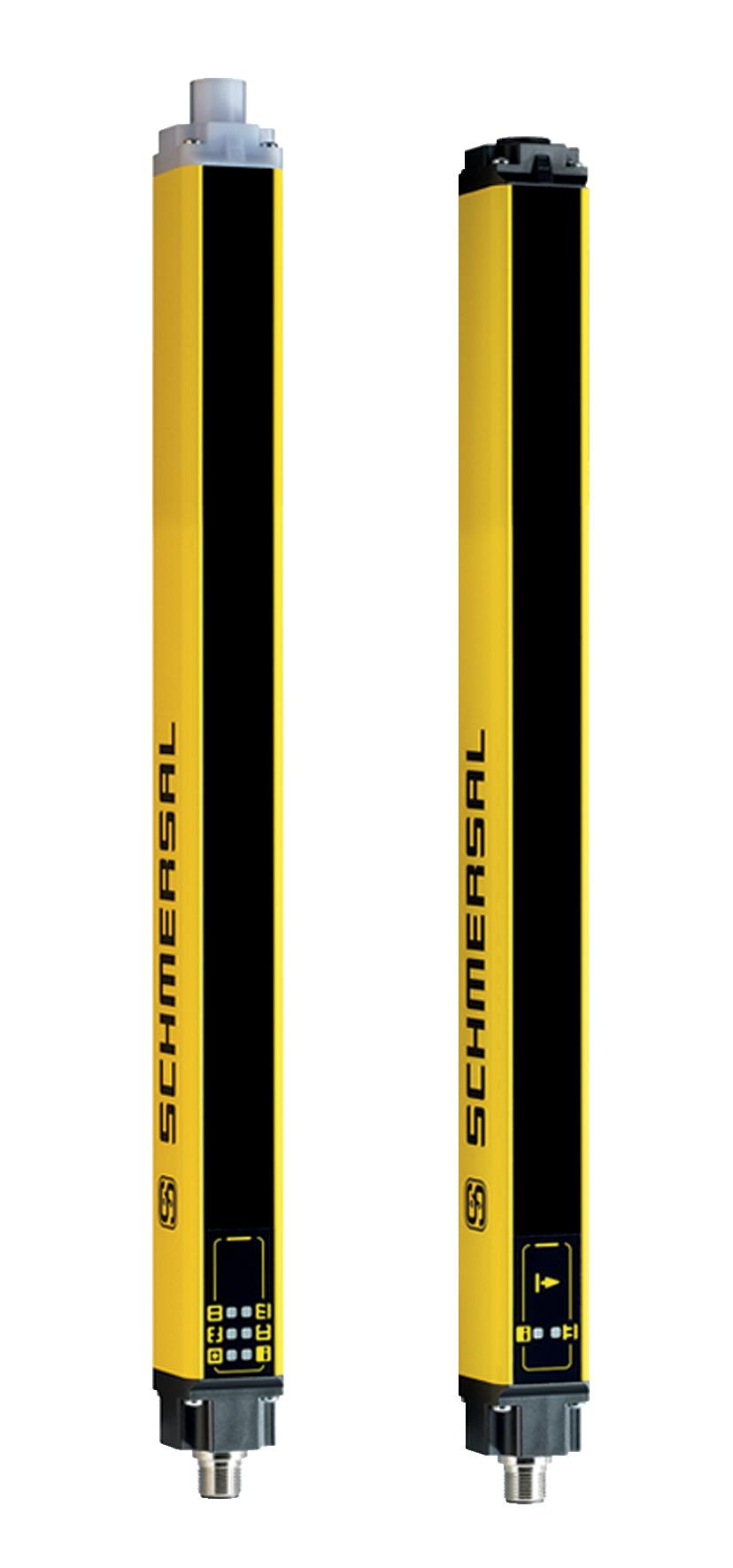

SCHMERSAL SLC440-ER-0730-30-01 SAFETY LIGHT CURTAIN 101216741

Product Code: 101216741

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for reliability, this system features a 730 mm protection field height and a fine detection ability of 30 mm, ensuring precise operation with its 36 beams. The integrated contactor control, restart interlock, and beam coding provide versatile safety solutions, while the hide function allows for flexible application. Monitor system status effortlessly with the 7-segment display and integral system diagnostics. With Bluetooth connectivity, two fail-safe digital outputs, and a convenient connector terminal, installation and maintenance are streamlined. Operating on a low energy consumption of just 10 W at 24 VDC, this safety light curtain is an efficient addition to any machine safety protocol.

Technical Specifications

Brand SCHMERSAL
Maximum Temperature (°C) 50
Minimum Temperature (°C) -25
Nominal Power (W) 10
Rated Maximum Operational Voltage DC (V) 24
Degree of Protection IP67
Series SLC
