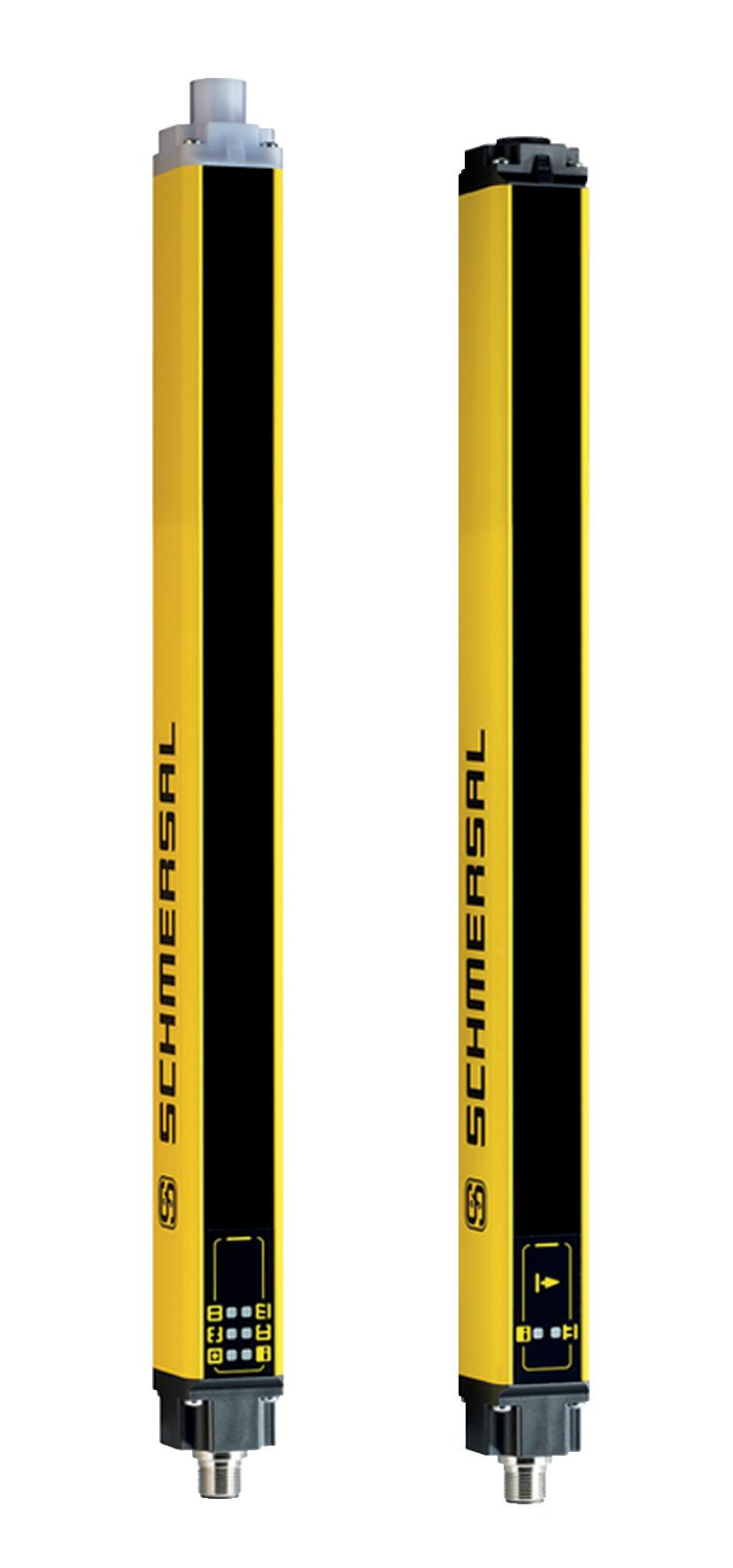

SCHMERSAL SLC440-ER-0490-30-01 SAFETY LIGHT CURTAIN 101216738

Product Code: 101216738

Enhance machine safety with the Schmersal SLC Series Safety Light Curtains, designed for reliable protection and accident prevention. This advanced system features a 490 mm high protection field with 24 beams capable of detecting objects as small as 30 mm, ensuring precise operation in critical environments. Integrated contactor control, restart interlock, and beam coding provide customizable security options, while the hide function allows for selective beam bypassing without compromising safety. The unit is equipped with a user-friendly 7-segment display and integral system diagnostics to streamline troubleshooting and maintenance. With Bluetooth connectivity, this safety light curtain offers convenient wireless configuration and monitoring. It boasts two fail-safe digital outputs and connects easily via a terminal connector. Operating on a low energy consumption of just 10 W at 24 VDC, it's an energy-efficient addition to any safety system. Trust in Schmersal's commitment to machine safety with their robust SLC series light curtains.

Technical Specifications

Brand SCHMERSAL
Maximum Temperature (°C) 50
Minimum Temperature (°C) -25
Nominal Power (W) 10
Rated Maximum Operational Voltage DC (V) 24
Degree of Protection IP67
Series SLC
