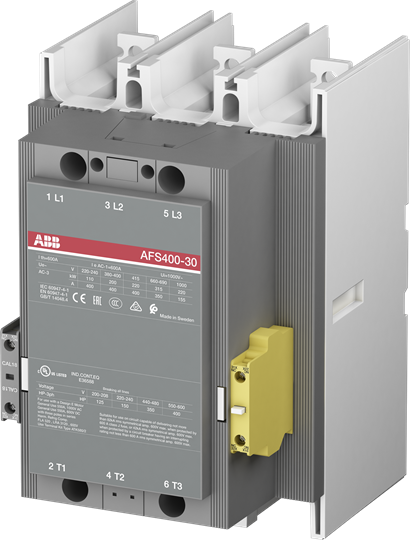

ABB AFS400301270 SAFETY CONTACTOR 3P 600A (AC-1), 200KW 415VAC CONTROL 100-250VAC/DC

Product Code: AFS400301270

The Safety Contactor 3P is a reliable and efficient solution for machine safety applications. It has a rated operational current of 600A at 690V (AC1) and 400A at 415V (AC-3), making it suitable for high-power operations up to 200kW. With a control voltage range of 100-250V AC/DC, this contactor offers flexibility in various electrical systems. It also features built-in auxiliary contacts, including 1 normally open (NO) and 2 normally closed (NC) contacts. These auxiliary contacts are easily identifiable with their yellow low energy auxiliary contact block. The inclusion of these auxiliary contacts ensures the necessary status feedback circuits required for machine safety applications. This not only enhances safety but also reduces panel energy consumption. Additionally, the contactor is designed to provide distinct operations even in unstable networks. The Safety Contactor 3P can be conveniently mounted either on DIN rails or panels, offering versatility in installation options.

Technical Specifications

Brand ABB
Auxiliary Contacts 1NO/2NC
Contacts 3NO (Main Contacts)
Degree of Protection IP20 (Coil Terminals)
Dimensions (mm) 278H x 216D x 186W
Mode of Operation AC/DC
Mounting Type DIN Rail/Panel
No. of Poles 3P
Rated Control Circuit Voltage AC/DC (V) 100 -250
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-1 400V (A) 600
Rated Operational Current AC-1 690V (A) 600
Rated Operational Current AC-3 415V (A) 400
Rated Operational Power AC-3 400V (kW) 200
Rated Operational Voltage AC (V) 1000
Short-Circuit Protective Device 630A, fuse type gG
Terminal Type Main Circuit: Bars
