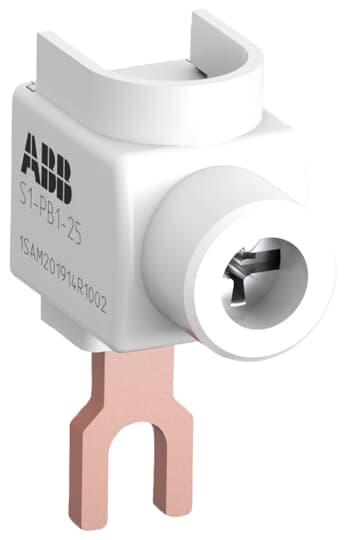

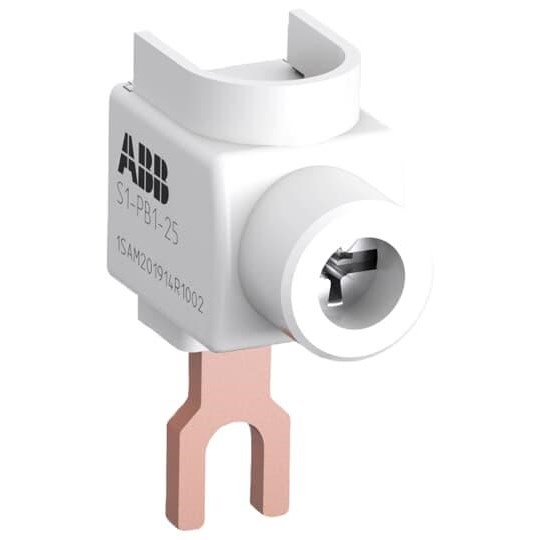

ABB S1-PB1-25 POWER INFEED BLOCK S1-PB1-25

Product Code: S1-PB1-25

S1-PB1-25 power infeed block allows the connection of cable cross sections up to 25mm² and is usable with MS116 or MS132. This allows the easy and fast connection for single-phase applications, especially for MS132-(K)T for control transformer protection. The rated current is 32 A.

Technical Specifications

No. of Inputs 1
No. of Outputs 1
Rated Operational Current (A) 32
Brand ABB
Conductor Cross Section (mm²) 4
Connection Type Screwing
Degree of Protection IP20
Dimensions (mm) 14W x 34H x 24D
Mounting Type Screw
No. of Poles 1
Nominal Current (A) 32
Rated Operational Voltage AC (V) 690
Rated Operational Voltage DC (V) 250
Suitable For Solid Conductors
Terminal Type Screw Terminals
