Product Code: REV4T113N

The reversing starter is a product that includes two contactors. These contactors have a rated operational current of 20A at 690V (AC1) and 9A at 415V (AC-3). The reversing starter has a power rating of 4kW and a rated control supply voltage of 100-250V AC/DC. It also features a mechanical and electrical interlock set for the interlocking of two AF contactors. Please note that an overload relay is not included with this product. Additionally, the reversing starter has an IP65 rating.

Brand	ABB
Auxiliary Contacts	1NO
Contacts	3NO (Main Contacts)
Degree of Protection	IP20
Rated Control Circuit Voltage AC/DC (V)	100 - 250
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Current AC-1 690V (A)	25
Rated Operational Current AC-3 415V (A)	9
Rated Operational Power AC-3 415V (kW)	4
Rated Operational Voltage AC (V)	690
Terminal Type	Screw

Contactors

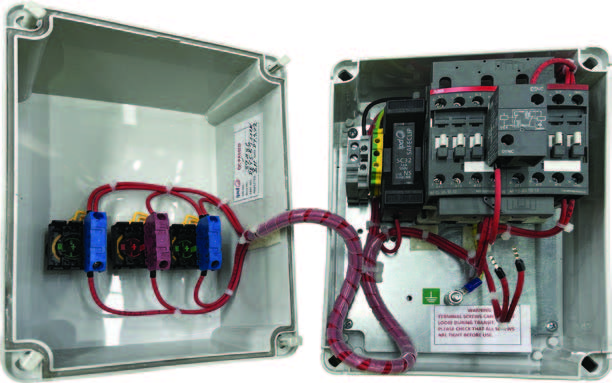

ABB REV4T113N REVERSING STARTER 4KW 415VAC, 100-250V AC/DC CONTROL W/O OVERLOAD IP65
