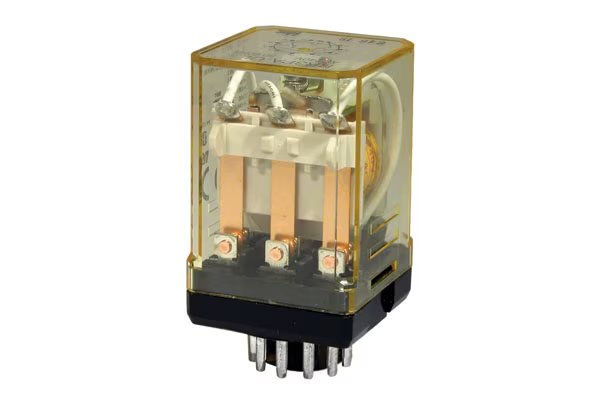

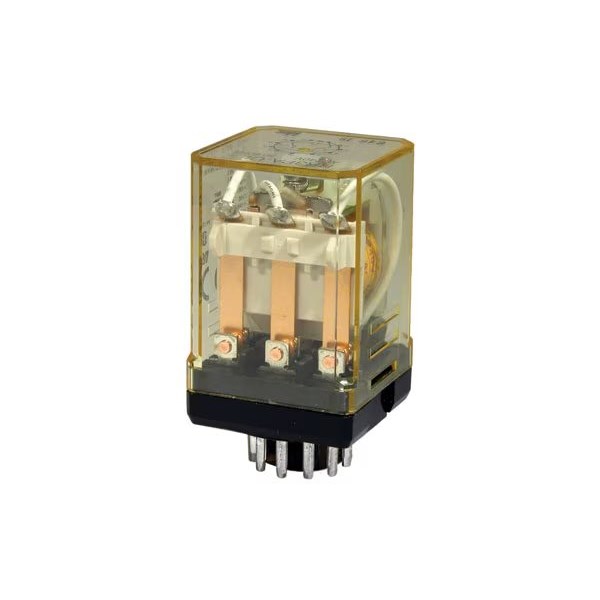

IDEC RELAY WITH LED 3PDT 10A 50V AC RR3PA-ULAC50V

Product Code: RR3PA-ULAC50V

The IDEC RR3PA-ULAC50V is a 3PDT relay with an integrated LED, designed for AC circuits up to 50V and 10A. It offers high reliability and longevity, with certifications from UL, CSA, TUV, and CE for its octal models. This relay includes a test operation check button and an indicator light for easy status monitoring. Versatile mounting options are available, including flange mounting, DIN socket, or panel mount socket, catering to various installation requirements.

Technical Specifications

Brand IDEC
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Terminal Shape Pin Terminal
Coil Voltage AC (V) 50
Contact Material Silver
Contacts 3PDT
Dimensions (mm) 35.6W x 68.5H x 35.6D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model With Indicator
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 96
