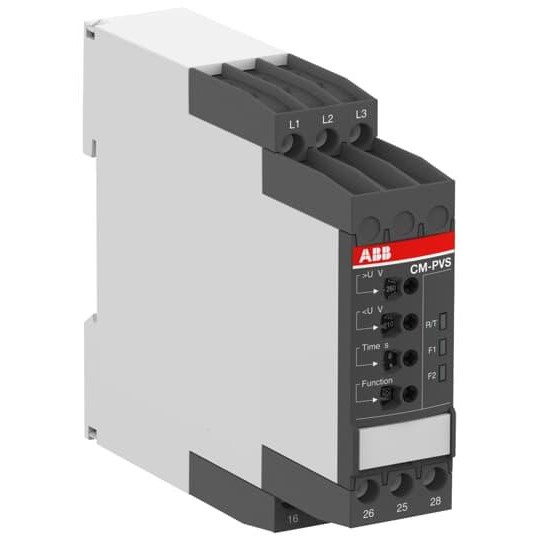

Product Code: CM-PVS.81S

The three-phase monitoring relay is designed to monitor various phase parameters, including phase failure, phase sequence over/undervoltage, and phase unbalance. It has a measuring range of 200 to 400 V AC (L-L) and operates with a rated control supply voltage within the same range. This relay features 2 CO (SPDT) outputs and allows for adjustable tripping delay from instantaneous to 30 seconds (0, 0.1-30 s). Additionally, it is equipped with double-chamber cage connection terminals.

Brand	ABB
Contacts	2CO (SPDT)
Degree of Protection	IP50 (Housing), IP20 (Terminals)
Duty Time	100%
Measuring Range AC (V)	Overvoltage: 3 x 300-400, Undervoltage: 3 x 210-300
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to +60
Overvoltage Category	III
Pollution Degree	3
Rated Control Supply Voltage AC (V)	200-400 (L-L)
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6/4
Terminal Type	Screw
Timing Range	Start-up delay: 200ms, Tripping delay: 0s or 0.1-30s (ON or OFF)

Electrical Time Switches, Timers & Control Relays

ABB CM-PVS.81S THREE-PHASE MONITORING RELAY MEASURING & CONTROL (L-L) 200-400VAC 2CO

Product Code: CM-PVS.81S
