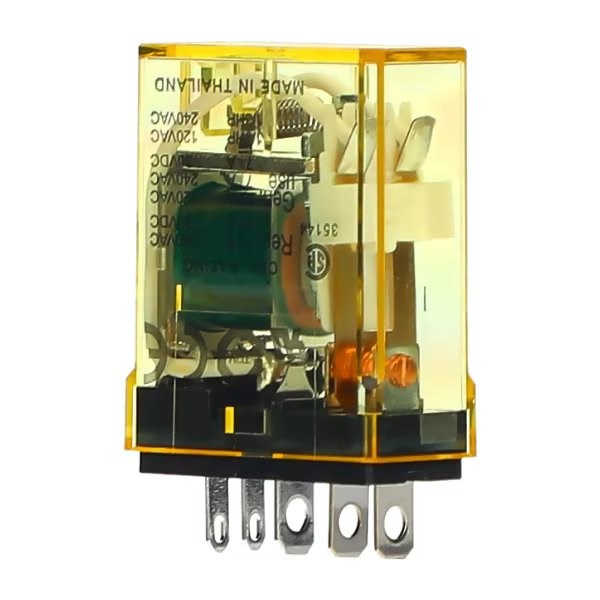

IDEC RELAY SPDT 10A WITH DIODE RELAY RH1B-UD-DC12V

Product Code: RH1B-UD-DC12V

The IDEC RH1B-UD-DC12V is a compact, high-capacity relay offering SPDT through 4PDT configurations with 10A contacts. This miniature power relay delivers large capacity switching in a space-saving design, ideal for various applications requiring reliable power management. Its integrated diode provides circuit protection, enhancing the relay's overall performance and longevity.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage DC (V) 12
Contact Material Silver Cadmium Oxide
Contacts SPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 1
Operating Humidity 45 to 85%
Power Consumption (W) 0.8
Weight (g) 24
