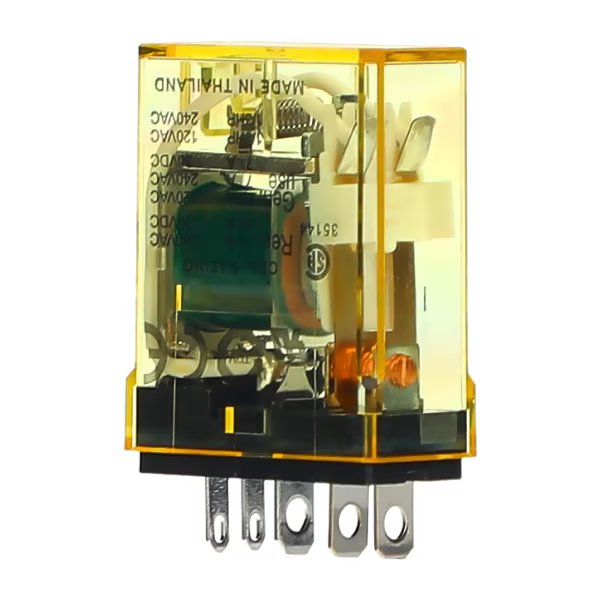

IDEC RELAY, SPDT, 10A, 48V DC WITH INDICATOR AND DIODE RH1B-ULD-DC48

Product Code: RH1B-ULD-DC48

  • SPDT through 4PDT, 10A contacts Compact power type relays Miniature power relays with a large capacity 10A contact capacity Compact size saves space
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Operating Humidity 45 to 85%
Terminal Shape Blade Terminal
Brand IDEC
Product Type Power
IPD Product Catalogue V17 https://resources.ipd.com.au/catalogue/product-catalogue-v17
Coil Voltage DC (V) 48
Contact Material Silver Cadmium Oxide
Contact Resistance (mO) 50
Contacts SPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 1
Operating Time 20ms
Power Consumption (W) 0.8
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Weight (g) 24

Description

The IDEC RH1B-ULD-DC48 is a compact, high-capacity relay designed for efficient operation in power applications. It features SPDT through 4PDT contacts with a 10A rating, suitable for various switching needs. The inclusion of an indicator and diode enhances functionality and protection. Its miniature size allows for space-saving installation without compromising on power, making it ideal for dense circuit configurations.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
