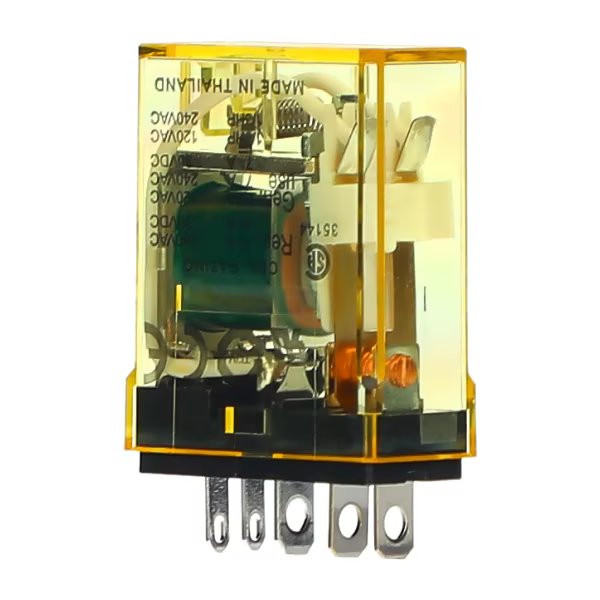

IDEC RELAY, SPDT, 10A, 12V DC WITH INDICATOR AND DIODE RH1B-ULD-DC12V

Product Code: RH1B-ULD-DC12V

The IDEC RH1B-ULD-DC12V is a compact, high-capacity relay designed for efficient operation in power applications. It features SPDT through 4PDT contacts with a 10A rating, suitable for various switching needs. The miniature design allows for space-saving installation without compromising on performance. Equipped with an indicator and diode, this relay ensures reliable switching and circuit protection in a wide range of uses.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage DC (V) 12
Contact Material Silver Cadmium Oxide
Contacts SPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 1
Operating Humidity 45 to 85%
Power Consumption (W) 0.8
Weight (g) 24
