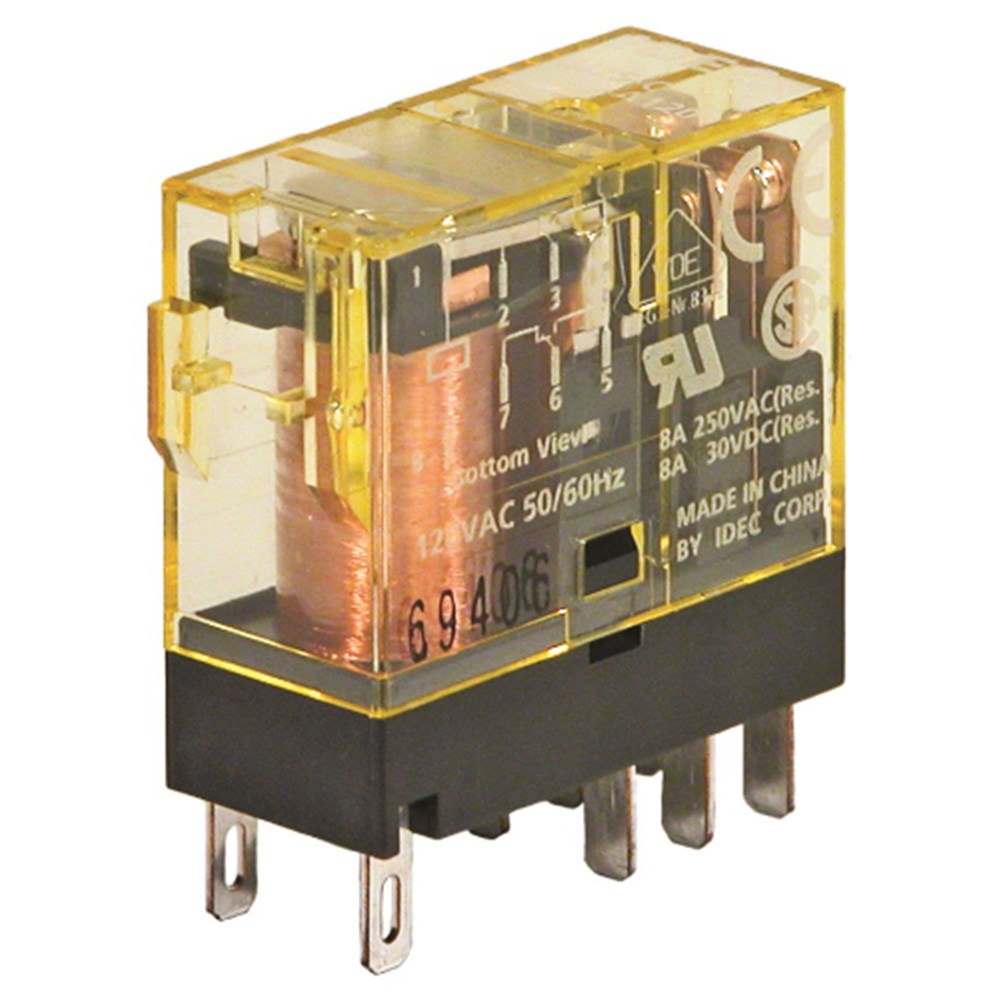

IDEC SLIM LINE PLUG-IN RELAY DPDT 24VAC 8A WITH LED

Product Code: RJ2S-CL-A24

The IDEC Slim Line Power Relay is a compact, plug-in RJ Series relay with a DPDT configuration. It operates with a coil voltage of 24VAC and supports a switching current up to 8A. Designed for efficient power control, it features two poles and includes a highly visible indicator LED. This relay is ideal for applications where space is at a premium, offering excellent durability and large switching capacity.

Technical Specifications

Brand IDEC
Coil Voltage AC (V) 24
Contact Configuration DPDT
Contact Material Silver-nickel alloy
Degree of Protection IP40
No. of Poles 2P
Operating Humidity 5 to 85% RH (no condensation)
Operational Temperature Range (°C) -40 to +70
Rated Current (A) 8
Relay Type RJ2S 2PDT Relay with LED indicator
Series RJ
Switching Voltage (V) 250 AC / 125 DC
Terminal Type Blade
